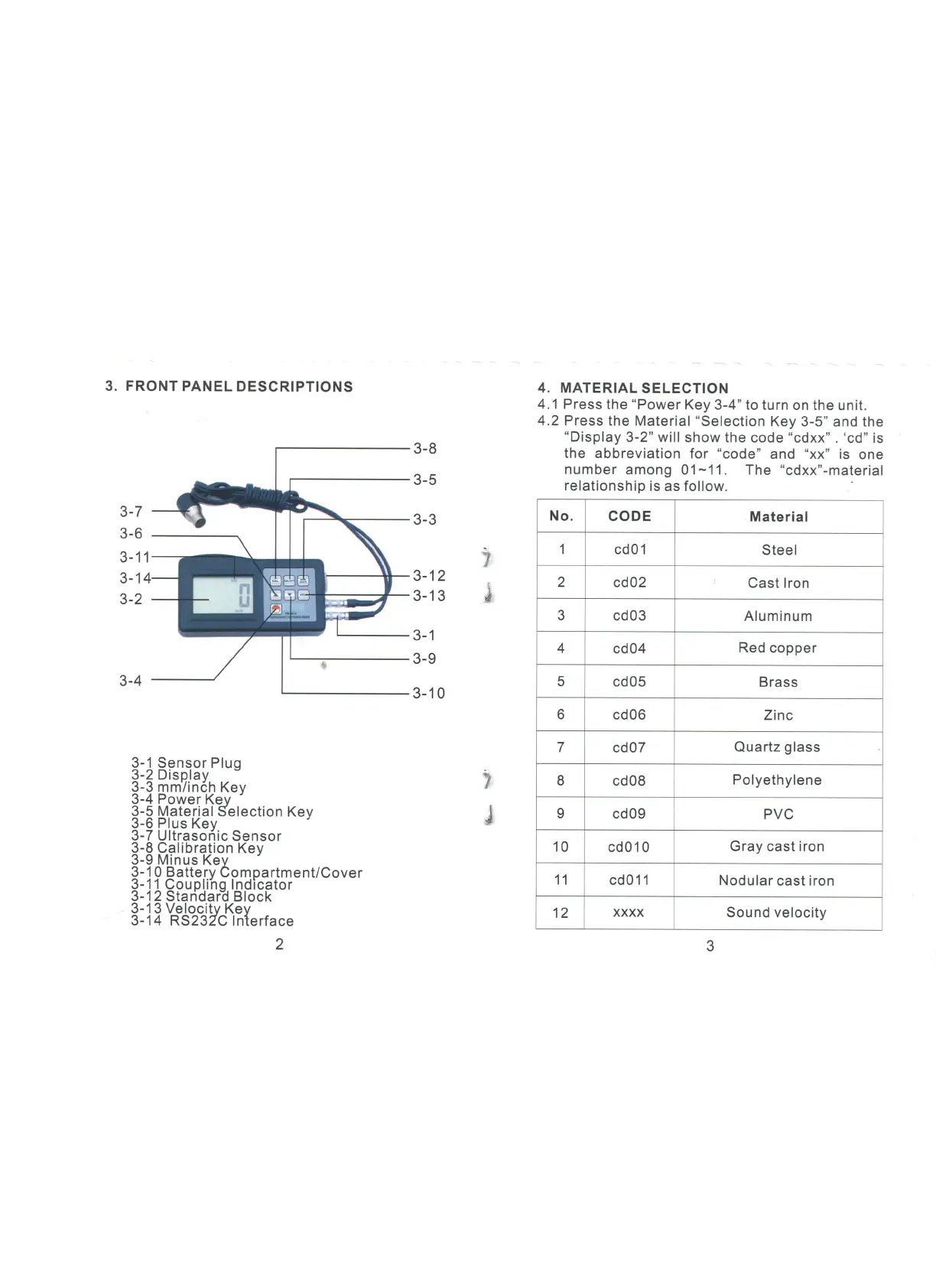

3.
FRONT PANEL DESCRIPTIONS
3-4
3-1
Sensor Plug
3-2
Display
3-3
mm/inch
Key
3-4
Power
Key
3-5
Material Selection
Key
3-6
Plus
Key
3-7
Ultrasonic Sensor
3-8
Calibration
Key
3-9
Minus
Key
3-10
Battery Compartment/Cover
3-11 Coupling Indicator
3-12
Standard
Block
3-13 Velocity
Key
3-14
RS23ZC
Interface
1
j
3-10
7
J
4.
MATERIAL SELECTION
4.1
Press
the
"Power
Key
3-4"
to
turn
on the
unit.
4.2
Press
the
Material "Selection
Key
3-5"
and the
"Display 3-2" will show
the
code
"cdxx"
.
rcd"
is
the
abbreviation
for
"code"
and
"xx"
is one
number
among
01-11.
The
"cdxx"-material
relationship
is as
follow.
No.
1
2
3
4
5
6
7
8
9
10
11
12
CODE
cd01
cd02
cd03
cd04
cd05
cd06
cd07
cd08
cd09
cd010
cd011
xxxx
Material
Steel
Cast
Iron
Aluminum
Red
copper
Brass
Zinc
Quartz glass
Polyethylene
PVC
Gray cast iron
Nodularcast iron
Sound velocity
