Page 12
Wall
Indoor Outdoor
5-7mm
)
0.2 - 0.3in
(
Fig.3.2

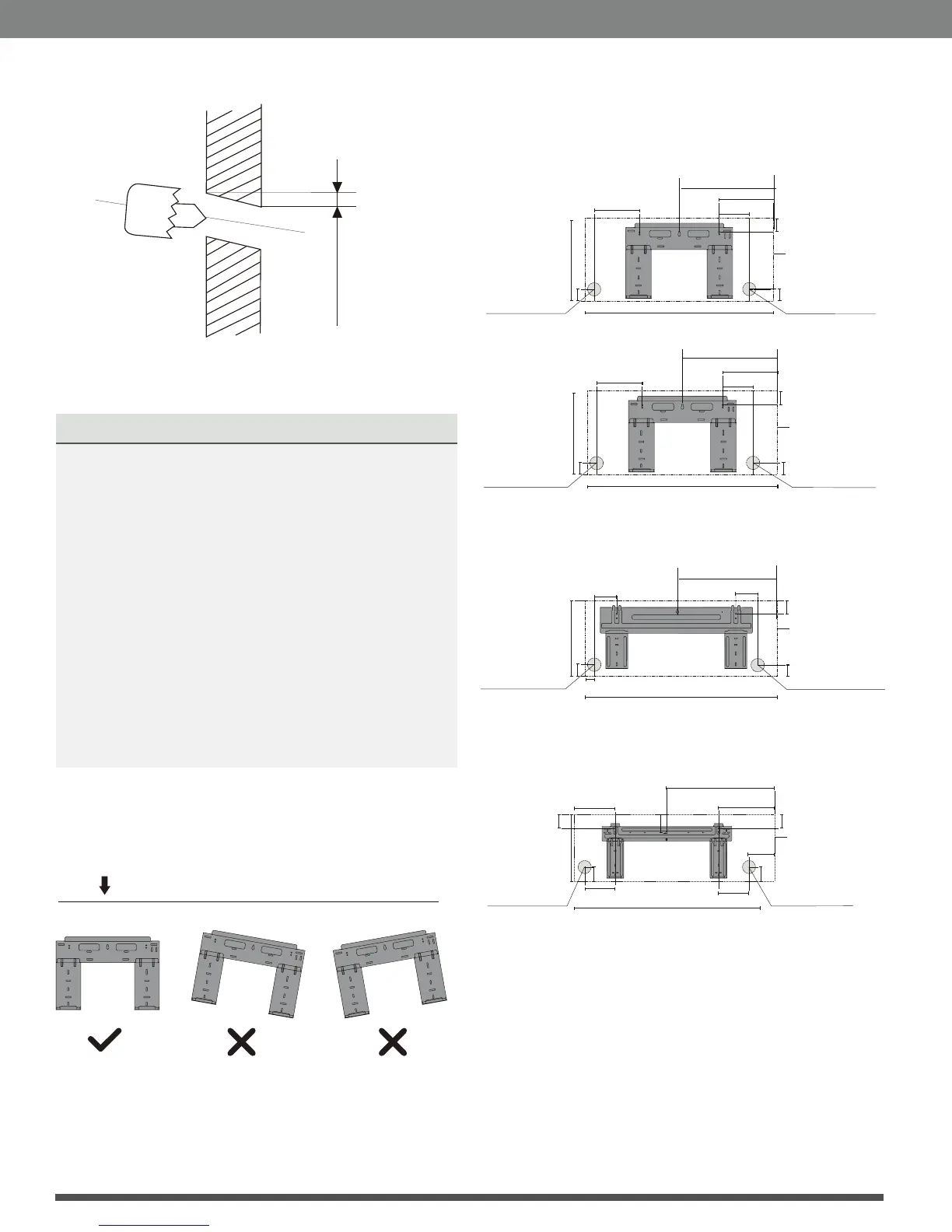

MOUNTING PLATE DIMENSIONS
Different models have different mounting
plates. In order to ensure that you have ample
room to mount the indoor unit, the diagrams to
the right show different types of mounting
plates along with the following dimensions:
• Width of mounting plate
• Height of mounting plate
• W etalp ot evitaler tinu roodni fo htdi
etalp ot evitaler tinu roodni fo thgieH•
• Recommended position of wall hole (both
to the left and right of mounting plate)
• Relative distances between screw holes
Fig. 3.3
Correct orientation of Mounting Plate
4in (101mm)
7.05in (179mm)
5.35in (136mm)
1.45in (37mm)
11.4in (290mm)
1.95in (49mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
Indoor unit outline
28.45in (722mm)
1.95in (49mm)
7.55in (192mm)
9.15in (232mm)
16.8in (426mm)
5.05in (128mm)
1.7in (43mm)
11.7in (297mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
Indoor unit outline
31.6in (802mm)
1.7in (43mm)
1.7in (43mm)
5.65in (144mm)
2.3in (58mm)
12.55in (319mm)
2.25in (57mm)
1.55in (40mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
38in (965mm)
5.45in (138mm)
1.35in (34mm)
Indoor unit outline
8.6in (219mm)
21.77in (553mm)
11.8in (300mm)
13.2in (335mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
42.5in (1080mm)
2.1in
(53.5mm)
1.85in (47mm)
3in (76mm)
2.1in (53.5mm)
1.85in (47mm)
5.85in
(148.7mm)
5.95in (151mm)
6.85in (174.3mm)
Indoor unit outline
20.37in (517.4mm)
13.7in (348.4mm)
Indoor Unit Installation
Series 12K Models
Series 9K Models
Series 18K Models
Series 24K Models
