Outdoor Unit Installation
on a concrete mounting platform, do the
following:
1. Mark the positions for four expansion bolts
based on dimensions in the Unit Mounting
Dimensions chart.
2. Pre-drill holes for expansion bolts.
3. Clean concrete dust away from holes.
4. Place a nut on the end of each expansion bolt.
5. Hammer expansion bolts into the pre-drilled
holes.
6. Remove the nuts from expansion bolts, and
place outdoor unit on bolts.
7. Put washer on each expansion bolt, then
replace the nuts.
8. Using a wrench, tighten each nut until snug.
WARNING
PROTECTION IS RECOMMENDED AT ALL
TIMES.
W
D
Air Inlet
Outdoor Unit Dimensions (inches)
Width (W) x Height (H) x Depth (D)
Mounting Dimensions (inches)
Width (A) Depth (B)
30.31 x 21.85 x 11.81 (inches) 19.2” (487) 11.73” (298).
30.31 x 21.85 x 11.81 (inches) 19.2” (487) 11.73” (298)
30.31 x 21.85 x 11.81 (inches) 19.2” (487) 11.73” (298)
33.27 x 27.64 x 14.29 (inches) 21.26” (540) 13.8” (350)
A-09-HP-C-230A
A-18-HP-C-230A
A-12-HP-C-230A
A-24-HP-C-230A
If you will install the unit on the ground or
WHEN DRILLING INTO CONCRETE, EYE
Step 3: Anchor outdoor unit
The outdoor unit can be anchored to the ground
or to a wall-mounted bracket.

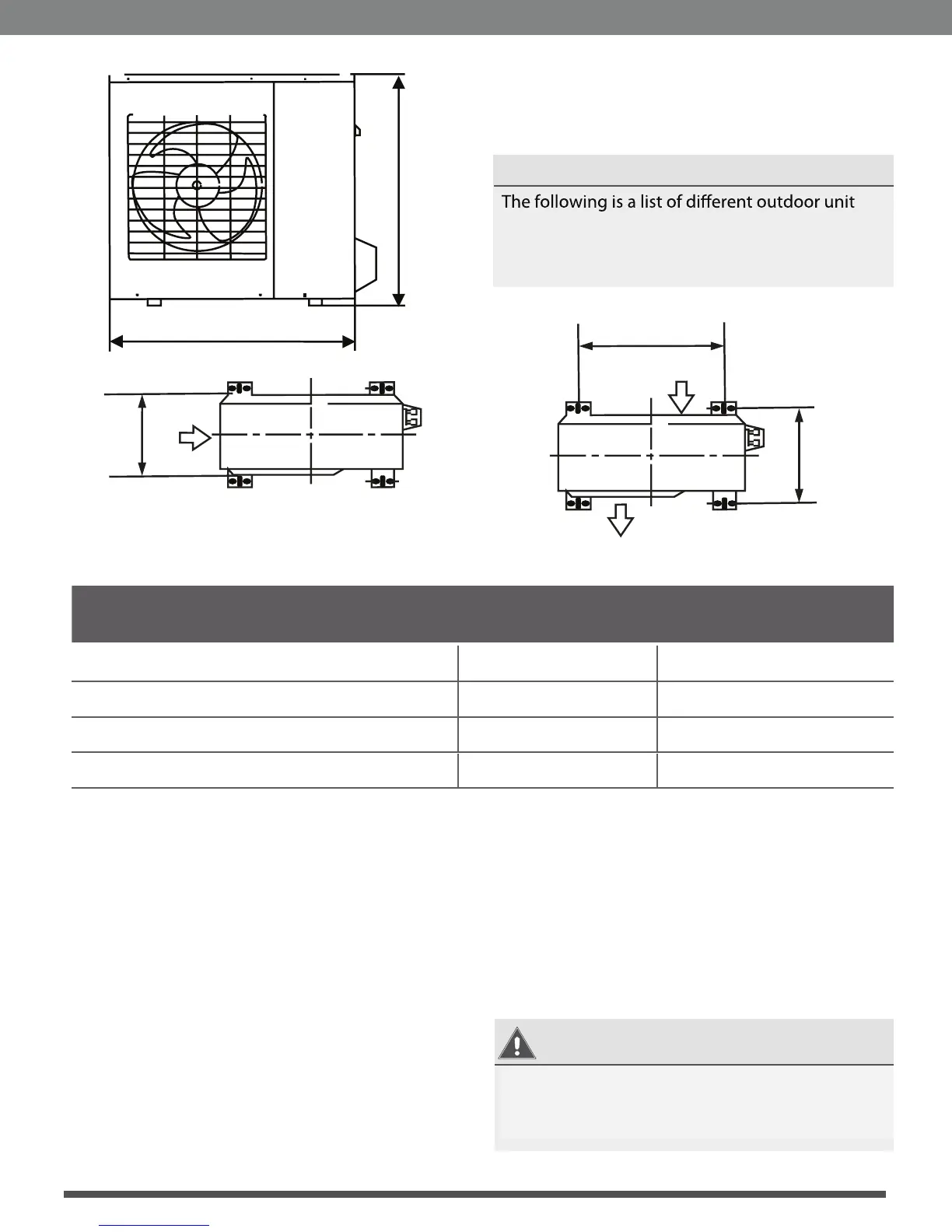

UNIT MOUNTING DIMENSIONS
sizes and the distance between their mounting
feet. Prepare the installation base of the unit
according to the dimensions below.
Fig. 4.5
H
A
B
Air Outlet
Air Inlet
To Next Page
