Outdoor Unit Installation
5
Installation Instructions – Outdoor
Unit
Step 1: Select installation location
Before installing the outdoor unit, you must
choose an appropriate location. The following
standards will help you choose an appropriate
location.
Proper installation locations meet the
following standards:
Meets all spatial requirements shown in
Installation Space Requirements (Fig. 4.1)
Good air circulation and ventilation
Firm and solid location that can support the
unit and will cause vibration.
Noise from the unit will not disturb others
Protected from prolonged periods of direct
sunlight or rain
DO NOT install unit in the following locations:
Near an obstacle that will block air inlets
and outlets
Near a public street, crowded areas, or where
noise from the unit will disturb others
Near animals or plants that will be harmed
by hot air discharge
Near any source of combustible gas
In a location that is exposed to large
amounts of dust
In a location exposed to a excessive amounts
of salty air

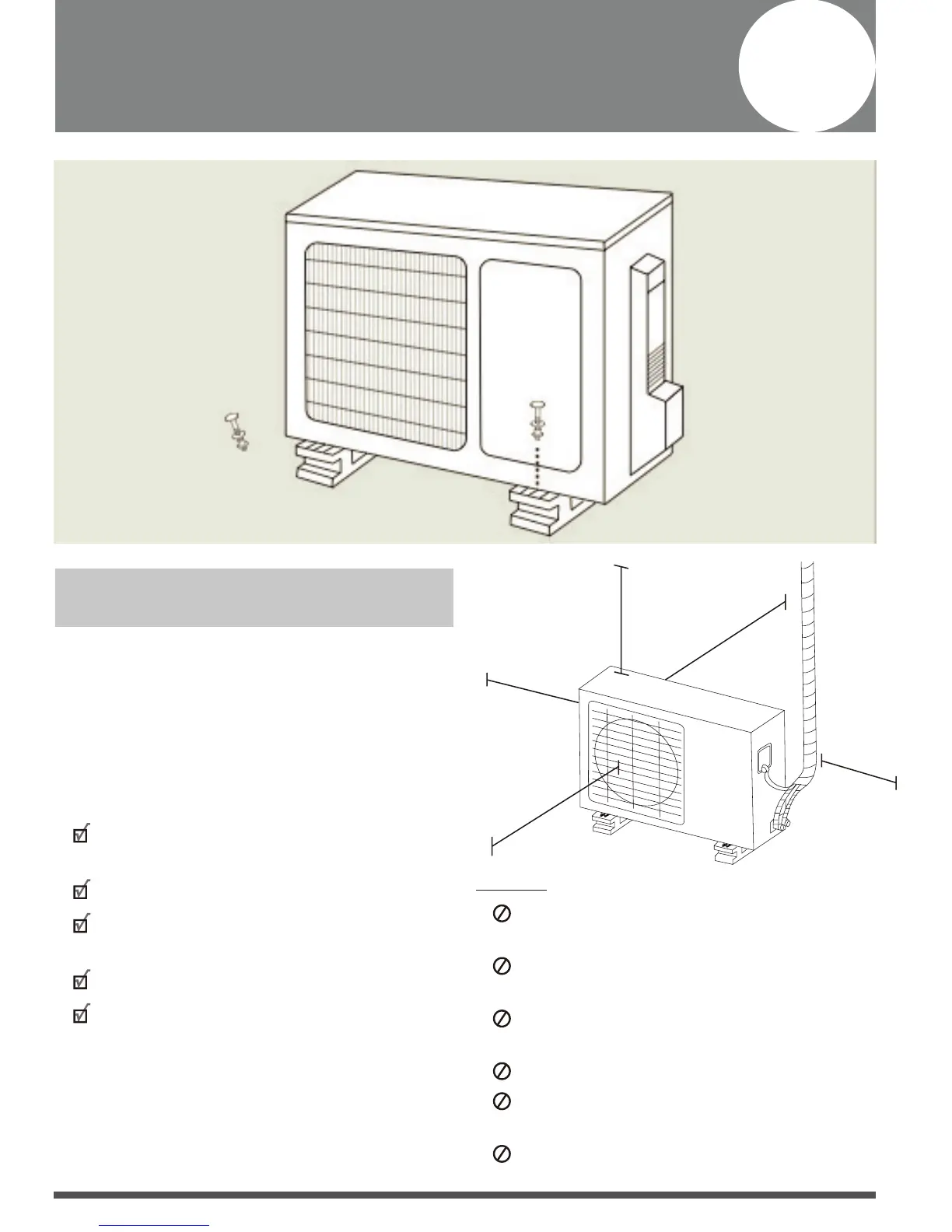

Fig. 4.1
24in (60cm)
on right
12in (30cm)
on left
79in (200cm)
in front
12in (30cm)
from back wall
24in (60cm) above
