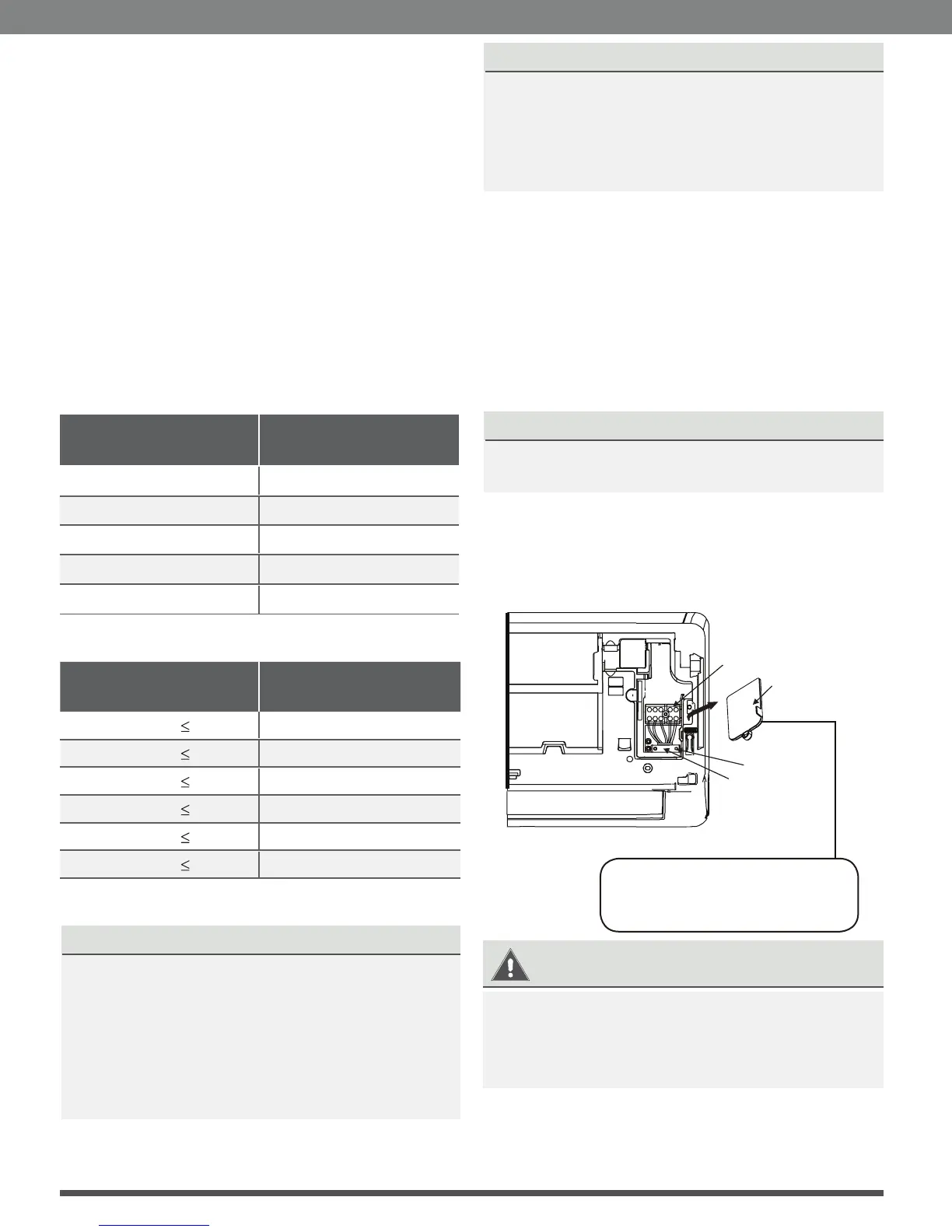

Page 16
Step 6: Connect signal cable
The signal cable enables communication
between the indoor and outdoor units and
provides power to the indoor unit. A 16
gauge AWG signal cable (H07RN-F) is
provided for the unit. The tables below are
for reference.
NOTE: the rated amp (A) draw will be at the
condenser (outdoor unit) and a table is
provided in that section, showing the
required power cable gauge specific to each.
Minimum Cross-Sectional Area of
Power and Signal Cables
Other Regions
Rated Current of
Appliance (A)
Nominal Cross-Sectional
Area (mm²)
> 3 and 6 0.75
> 6 and
10 1
> 10 and
16 1.5
> 16 and
25 2.5
> 25 and
32 4
> 32 and
40 6
CHOOSE THE APPROPRIATE CABLE SIZE
The size of the power supply cable, signal
cable, fuse, and switch needed is determined
by the maximum unit current. The maximum
unit current is indicated on the nameplate
located on the side panel of the unit. Refer to
this nameplate to choose the right cable, fuse,
or switch.
TAKE NOTE OF FUSE SPECIFICATIONS
The air conditioner’s circuit board (PCB) is
designed with a fuse to provide overcurrent
protection. The specifications of the fuse are
printed on the circuit board, such as:
T3.15A/250VAC, T5A/250VAC, etc.
1. Prepare the cable for connection:
a. Usingwirestrippers,strip therubberjacket
from both ends of signal cable to reveal
about 1.57in (40mm) of the wires inside.
b. Strip the insulation from the ends of the
wires.
c. Using wire crimper, crimp u-type lugs on
the ends of the wires.
PAY ATTENTION TO LIVE WIRE
While crimping wires, make sure you clearly
distinguish the Live (“L”) Wire from other wires.
2. Open front panel of the indoor unit.
3. Using a screwdriver, open the wire box cover
on the right side of the unit. This will reveal
the terminal block.
Terminal block
Wire cover
Screw
Cable clamp
WARNING
4. Unscrew the cable clamp below the terminal
block and place it to the side.
5. Facing the back of the unit, remove the plastic
panel on the bottom left-hand side.
Fig. 3.9
The Wiring Diagram is located
on the inside of the indoor unit’s
wire cover.
North America
Appliance Amps (A)
AWG
10 18
13 16
18 14
25 12
30 10
ALL WIRING MUST PERFORMED IN
ACCORDANCE WITH THE WIRING DIAGRAM
LOCATED ON THE INSIDE OF THE INDOOR
UNIT’S WIRE COVER.
Indoor Unit Installation
