MrCool Advantage Series Installation Manual

Page 27
Instructions for Connecting Piping
to Outdoor Unit

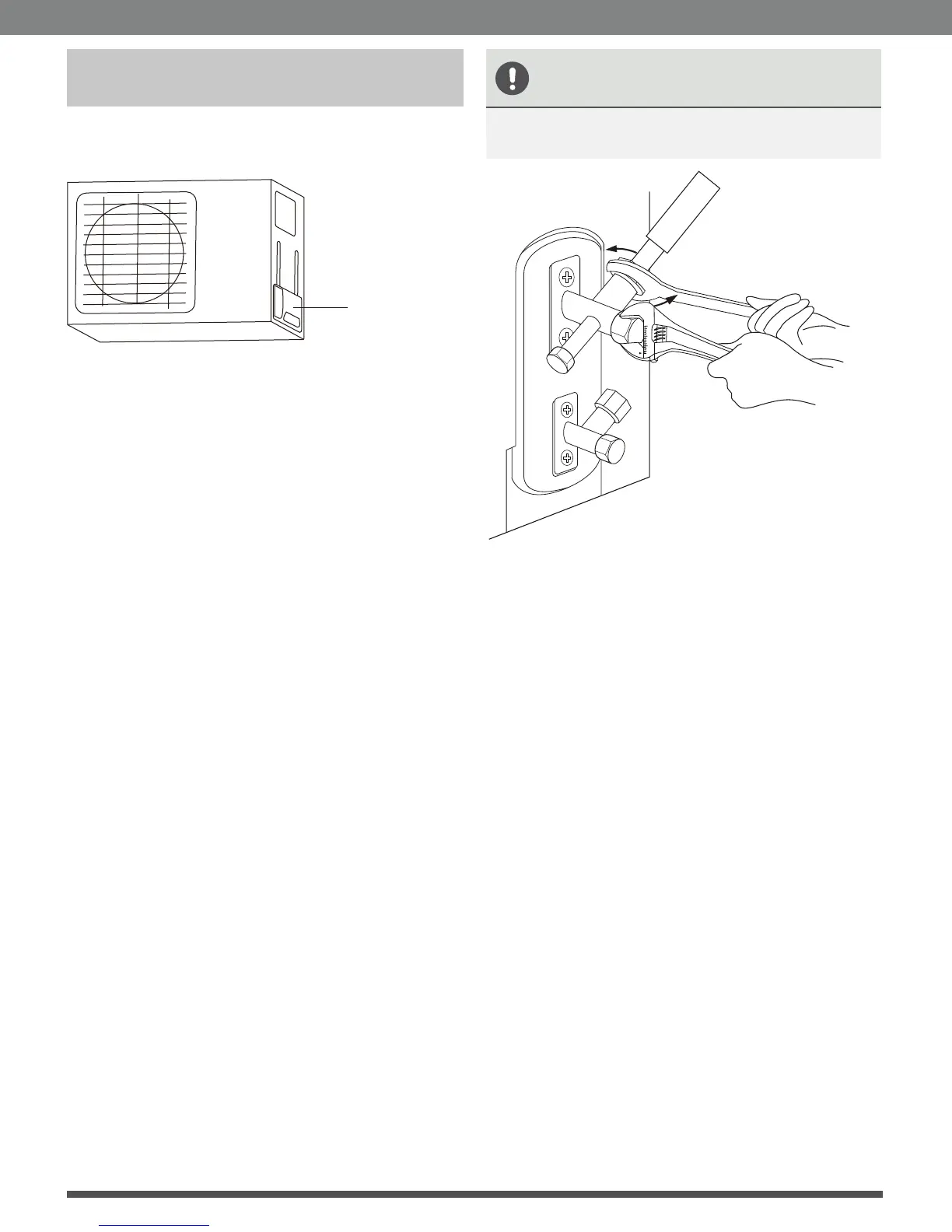

1. Unscrew the cover from the packed valve on
the side of the outdoor unit. (See Fig. 5.9)
Valve cover
2. Remove protective caps from ends of valves.
3. Align flared pipe end with each valve, and
tighten the flare nut as tightly as possible by
hand.
4. Using an adjustable wrench, grip the body
of the valve. Do not grip the nut that seals
the service valve. (See Fig. 5.10)
USE ADJUSTABLE WRENCH TO
GRIP MAIN BODY OF VALVE
Torque from tightening the flare nut can snap
off other parts of valve.
5.
While firmly gripping the body of the valve,
use a torque wrench to tighten the flare nut
according to the correct torque values.
6. Loosen the flaring nut slightly, then tighten
again.
7. Repeat Steps 3 to 6 for the remaining pipe.
Fig. 5.9
Fig. 5.10
Refrigerant Piping Connection

MrCool Advantage Series Specifications

General

Refrigerant	R410A
Operating Temperature Range (Cooling)	5°F to 122°F
Dimensions (Indoor Unit)	Varies by model
Dimensions (Outdoor Unit)	Varies by model
Weight (Indoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Type	Mini-Split Air Conditioner
Cooling Capacity	9, 000 - 36, 000 BTU
SEER Rating	Up to 22 SEER
Power Supply	208/230V, 60Hz
HSPF Rating	Up to 10 HSPF
