MrCool MST03 - Typical Hookup of Heat Only System with Normally Open Zone Valves

22
1. POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
2. FACTORY INSTALLED JUMPER.

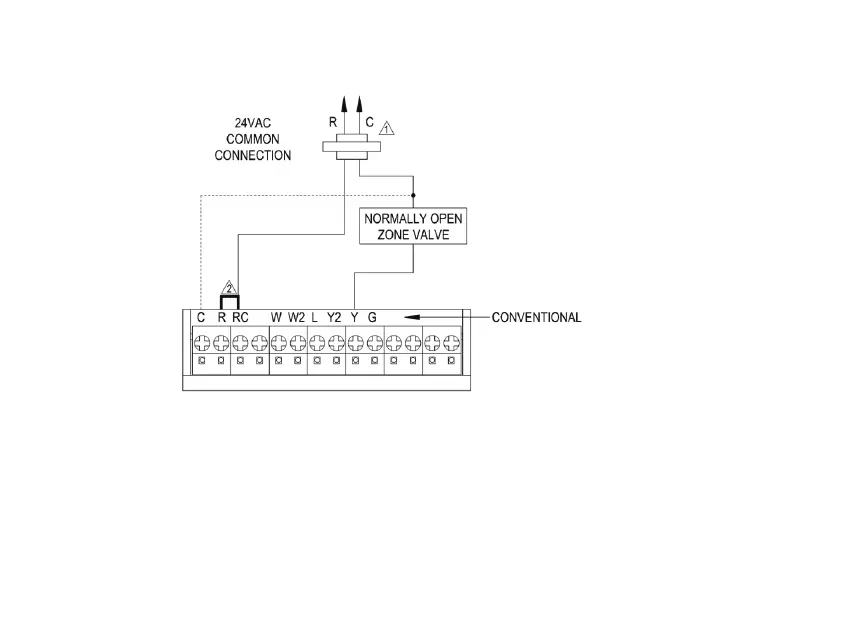

Fig. 13. Typical hookup of heat only system with normally open zone valves.
