62
Appendix
GB
Model 9010/9020 SIL

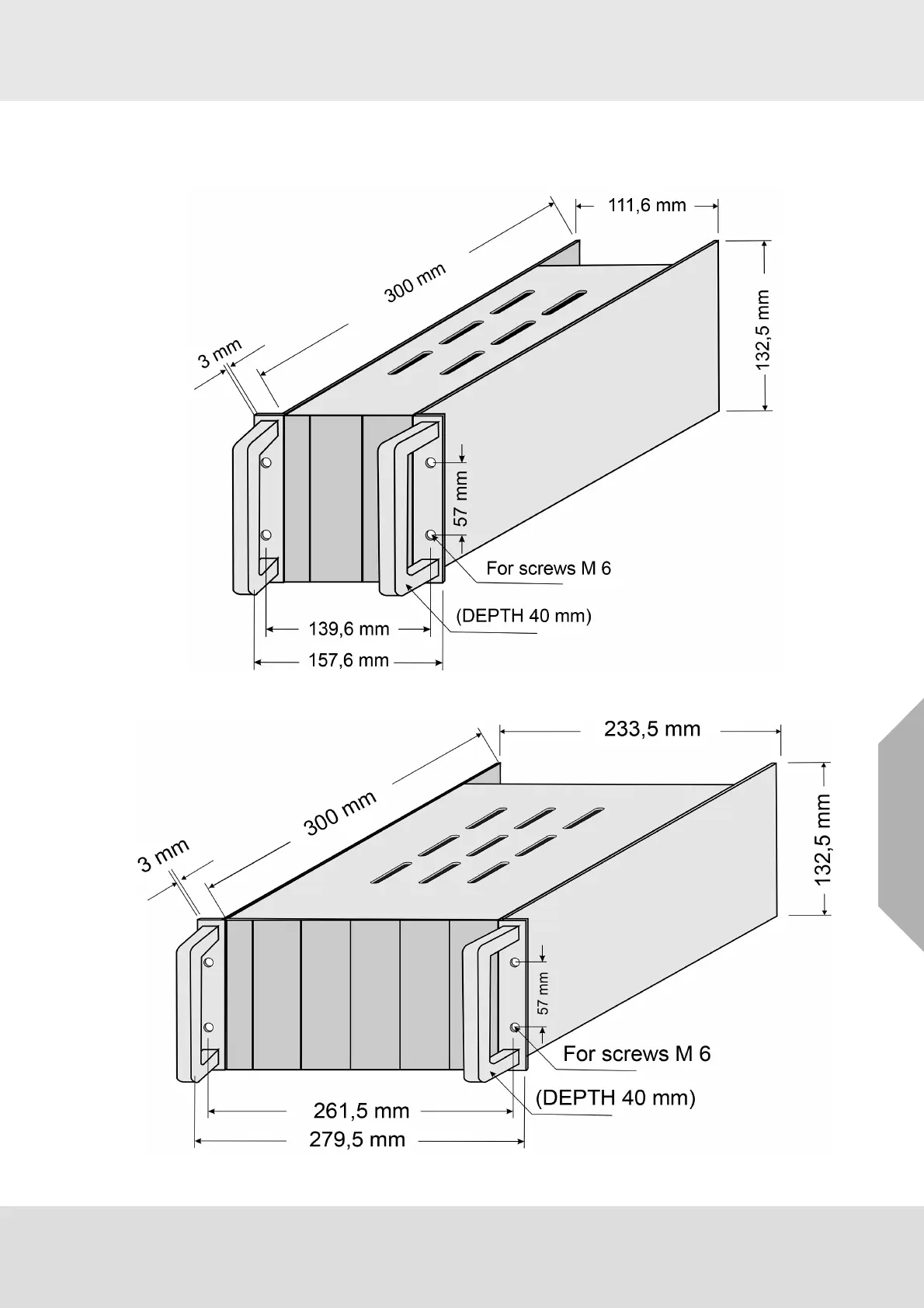

12.2 Outline Dimensions
19” Rack Versions
Fig. 14 Rack for 2 modules (Panel cut out 124 x 133 mm)
Fig. 15 Rack for 5 modules (Panel cut out 246 x 133 mm)
