Model 9010/9020 SIL

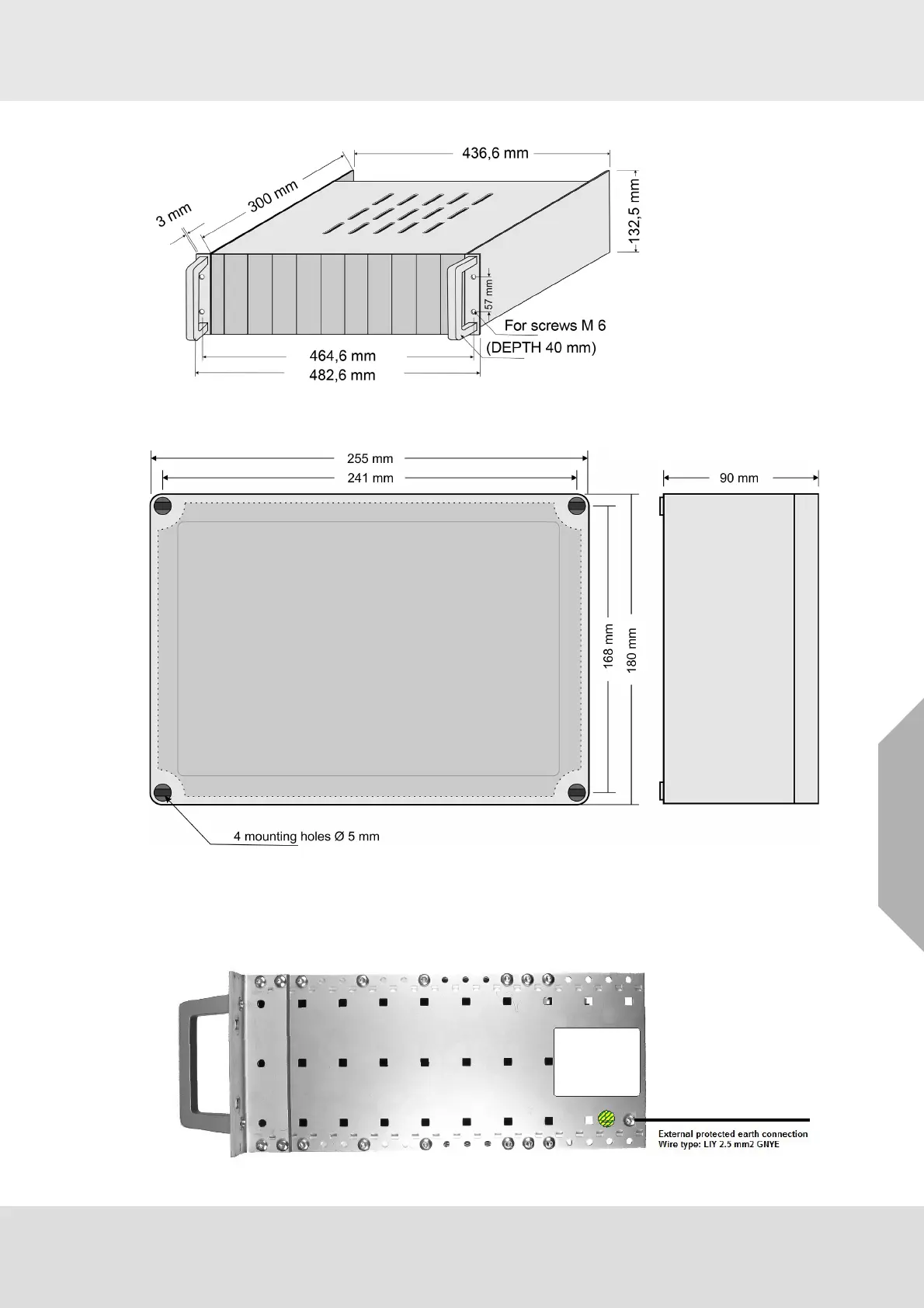

Fig. 16 Rack for 10 modules (Panel cut out 448 x 133 mm)
12.3 Wall Mounted Version
Fig. 17 Wall mounted plastic housing for 1 (9010) or 2 (9020) channels
Maximum screw diameter 5 mm
Maximum screw head diameter 8 mm
12.4 External earth Connection
Fig. 18 External earth connection
