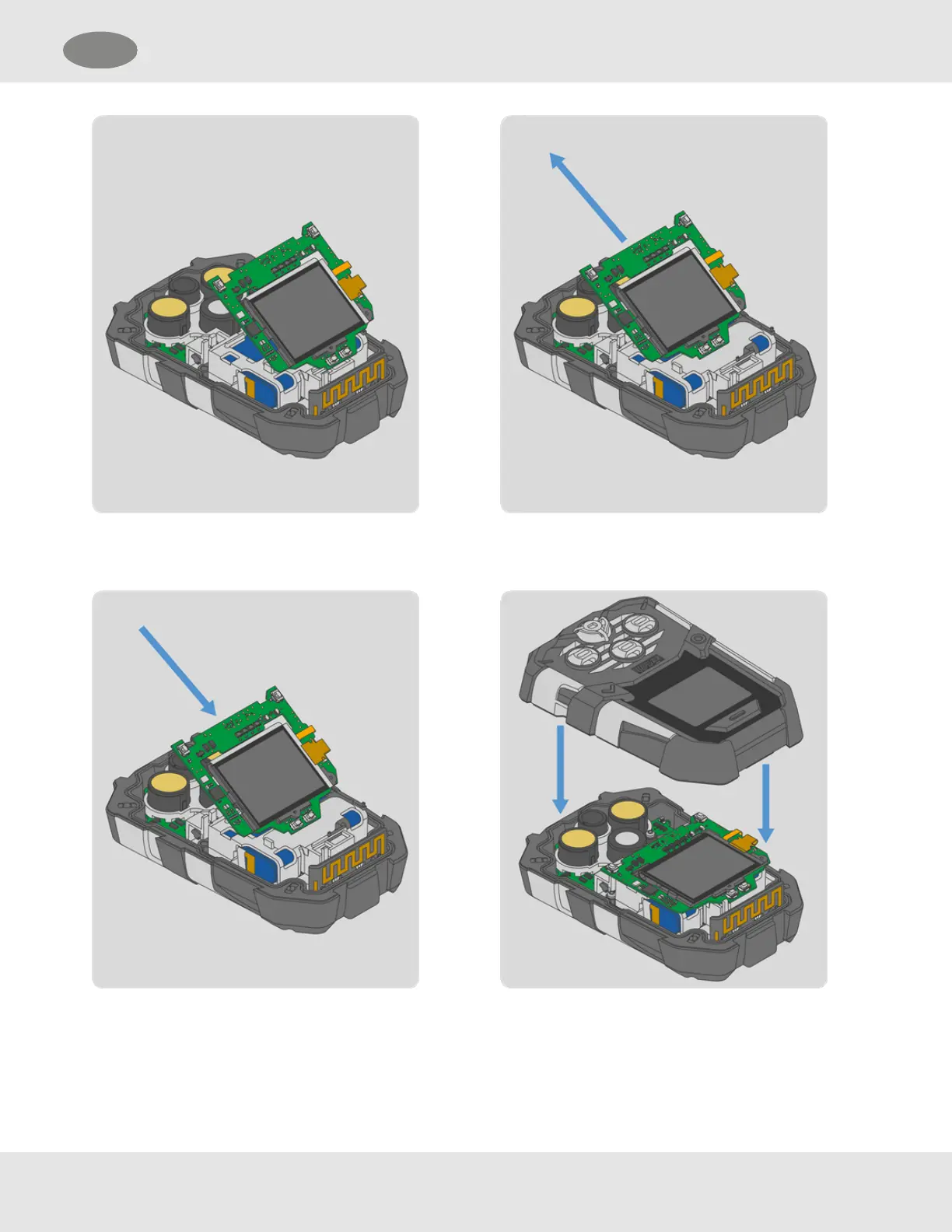

3. Remove the display PCBA and display assembly by

lifting it up as shown below.

4. Lift the display PCBA and display assembly away

from the main board at the angle shown. Discard

according to local regulations.

5. Take the new display PCBA and display assembly ,

and insert the bottom left edge under the snap fit on

the battery holder. Push the display PCBA down to

engage the board to board connector.

6. Install the front housing.

43 ALTAIR io 4

US 5 Device Care
