5.4.1 Models 1010 and 1044 (Black Impact Cap)
(1) Turn the fire helmet upside down.
(2) Remove the ear cover.
(3) Use a Phillips-head screwdriver to remove the four screws that attach the left and right brackets,
MSA nameplates, and cap nuts to the shell.
(4) If applicable, do the following:
a) Use a Phillips-head screwdriver to remove the goggle clips and/or faceshield brackets, then
remove the goggles and/or faceshield.
b) Remove the Defender visor by squeezing the quick-connect locking arms together and
pulling up.
c) Use an adjustable wrench and Phillips-head screwdriver to remove the NFPA-compliant
Bourke lens.
(5) Remove the impact cap assembly from the shell.
(6) If necessary, do the following to remove the suspension from the impact cap:
a) Squeeze to release the four suspension attachment clips, and pull the suspension away from
the impact cap.
b) Squeeze to release the two attachment clips for the additional suspension strap, and remove
the additional suspension strap.
(7) If necessary, do the following to install the suspension in the impact cap:
a) Install the additional suspension strap in the impact cap, and connect the two attachment
clips.
b) Install the suspension in the impact cap, and connect the four suspension attachment clips.
c) Pull up on the suspension to make sure the attachment clips are fully engaged and the
locking tabs are secure.

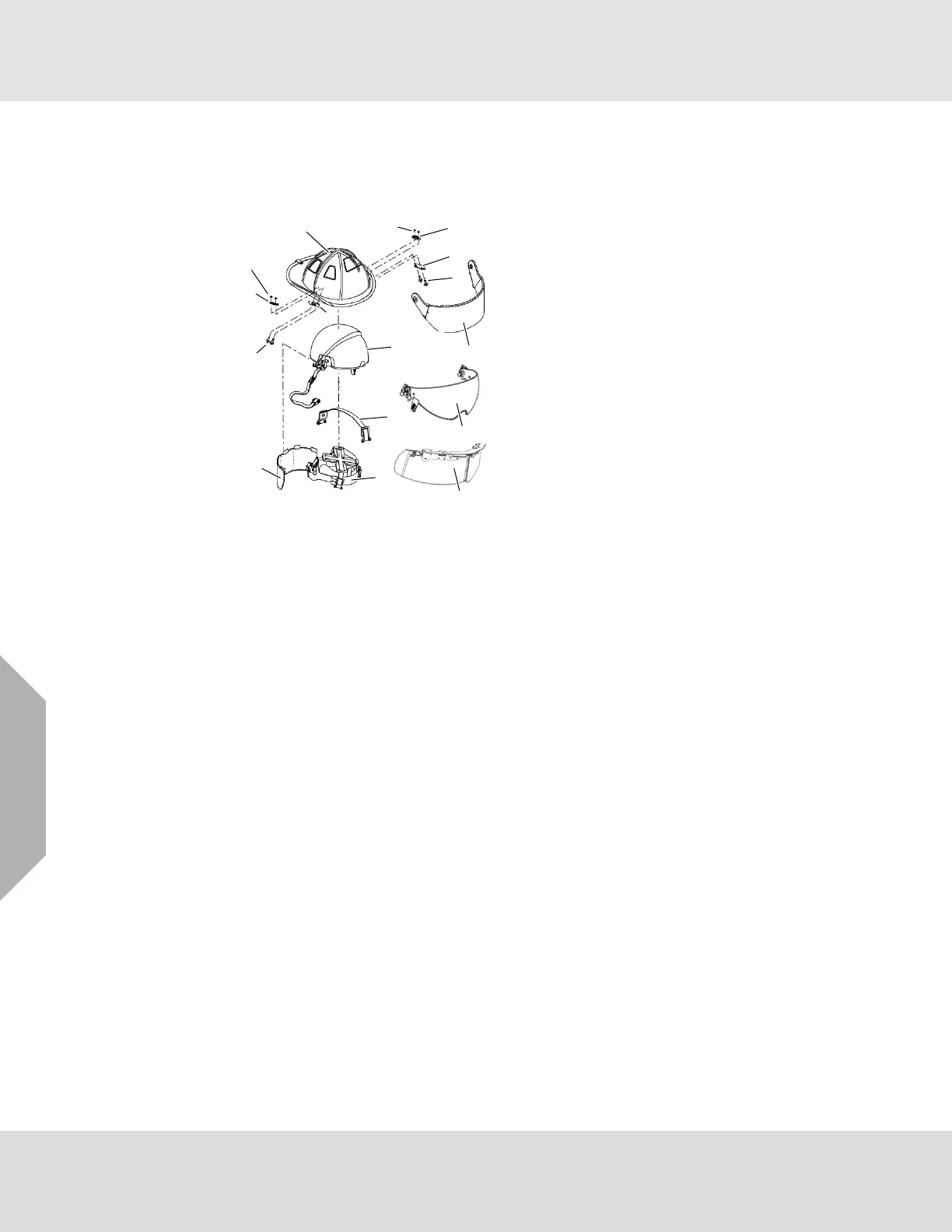

1 Shell 8 Impact cap
2 Cap nuts 9 Additional suspension strap
3 Left bracket 10 Suspension
4 Nameplate 11 Ear cover
5 Screws 12 Right bracket
6 Faceshield 13 NFPA-compliant Bourke lens
7 Defender visor
1
3
4
5
2
4
8
9
10
11
12
5
2
6
7
13
