FIREHAWK M7 SECOND STAGE REGULATOR
FIREHAWK M7 SECOND STAGE REGULATOR
DISASSEMBLY

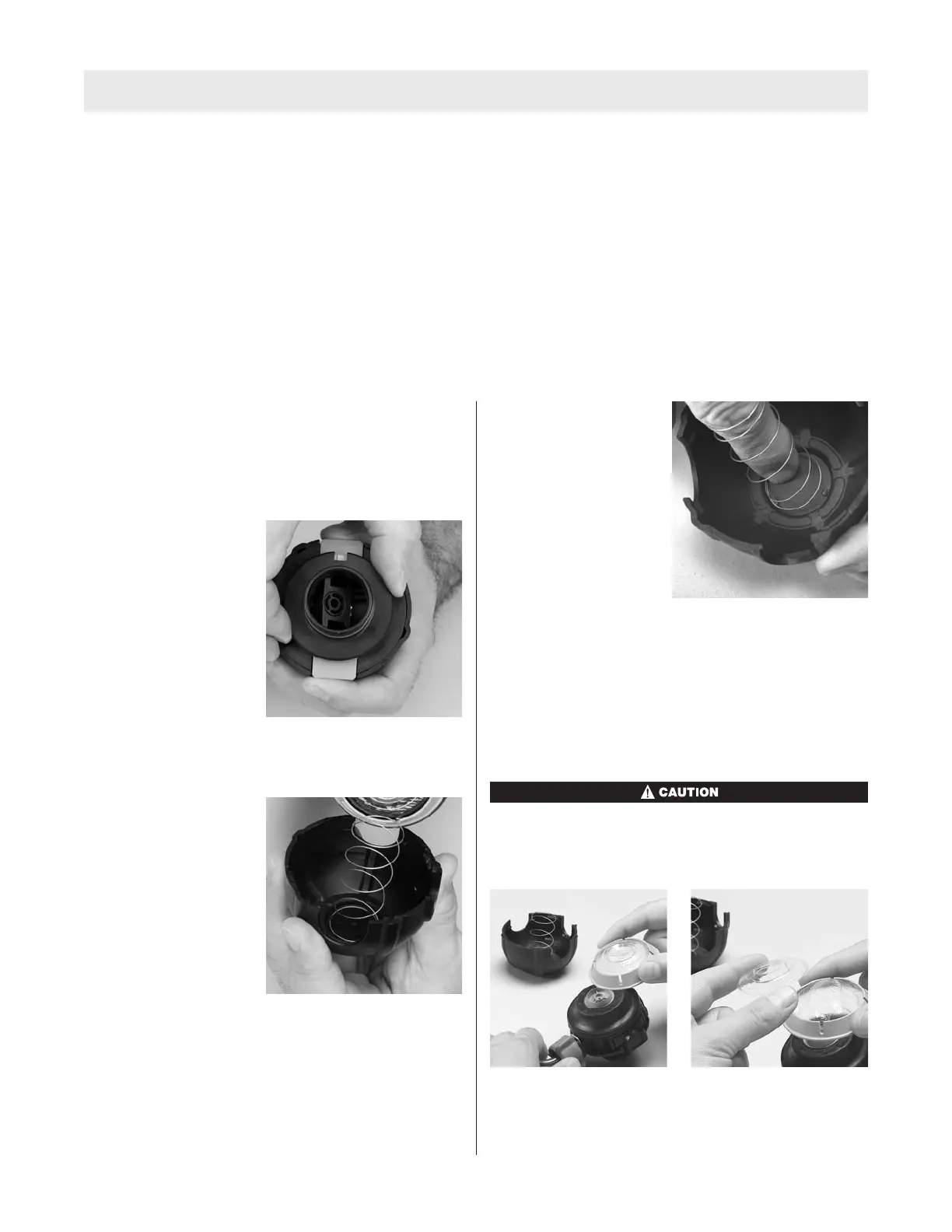

Removing the Regulator Cover and Spring
1. Remove the regulator cover.
a. Press and hold the
release buttons while
pressing the regula-
tor housing retaining
latches.
Note: Do not touch the cover while pressing the release
buttons and retaining latches. Let the spring act on the
cover.
b. Allow the cover to
drop into your palm.
c. Remove the spring,
and spring retainer
from the regulator
housing.
d. Turn the spring clockwise to remove it from the
retainer.
Note: Do not stretch the spring.
Removing the Diaphragm
1. Remove the CBRN Shield.
Handle the CBRN Shield by the rim only.
a. Lift the CBRN Shield Assembly and Spring Cap off
the diaphragm assembly.
b. Lift the Spring Cap off the CBRN Shield Assembly.
4
TAL 114 (L) Rev. 7 - 10093086
