Test bench MS008
10
• White – FR – the terminal that transmits the data on the regulator load. This adapting wire is
connected to the following terminals: FR, DFM, M;
• Gray – D+ – the terminal for the connection of the circuit of voltage regulator control lamp. It’s
connected to the terminals: D+, L, IL, 61;
• Yellow – GC – is used for the connection of the channel of alternator voltage regulator control.
This adapting wire is connected to the following terminals: COM, SIG, etc.
• Brown – К30 – is connected to the starter terminal 30 that is connected to the storage battery
terminal +.
• Violet – К45 – is connected to the starter solenoid output connected to starter electric motor.

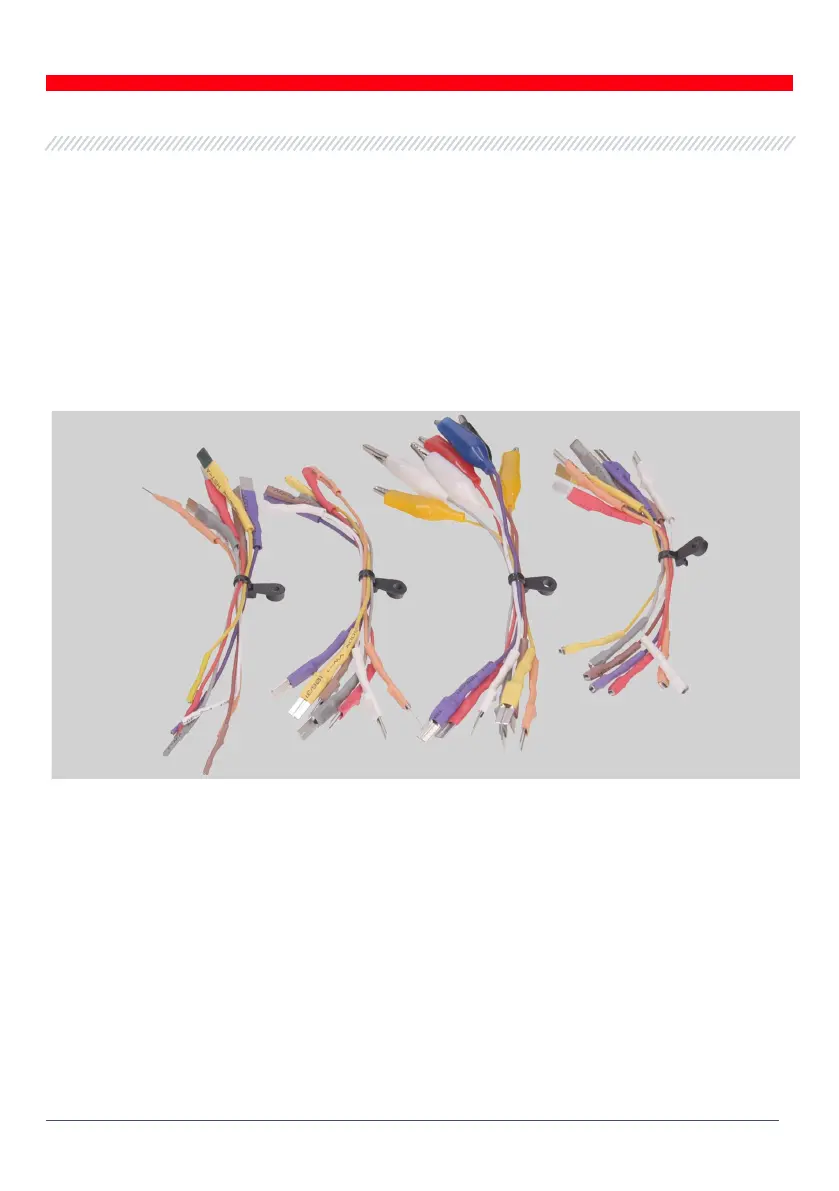

Figure 5. Adapting wire kit
