MSG Equipment MS300 - Test Bench Structure and Components

4. STRUCTURE

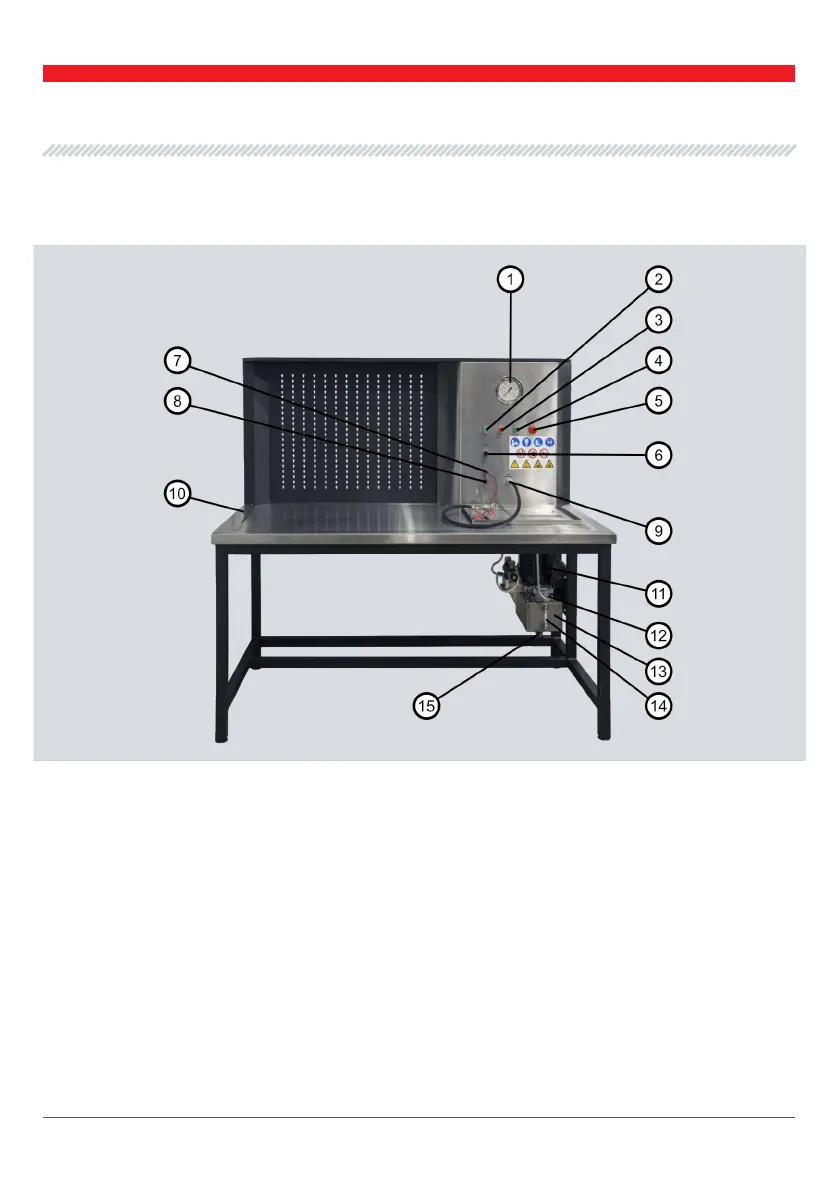

Fig. 1 – Test Bench MS300 for diagnostics of brake calipers
1 – manometer; 2 – pressure decrease button; 3 – pressure increase button; 4 – switch
on/off button; 5 – emergency stop button; 6 – 12 V power supply adjustment knob, polarity
change button; 7 – 12 V power terminal No1; 8 – power terminal No2; 9 – High-pressure hose
connector; 10 – vice placement location; 11 – electric motor; 12 – power uid lter; power
13 – uid tank; 14 – power uid level sensor; 15 – power uid drainage valve.
