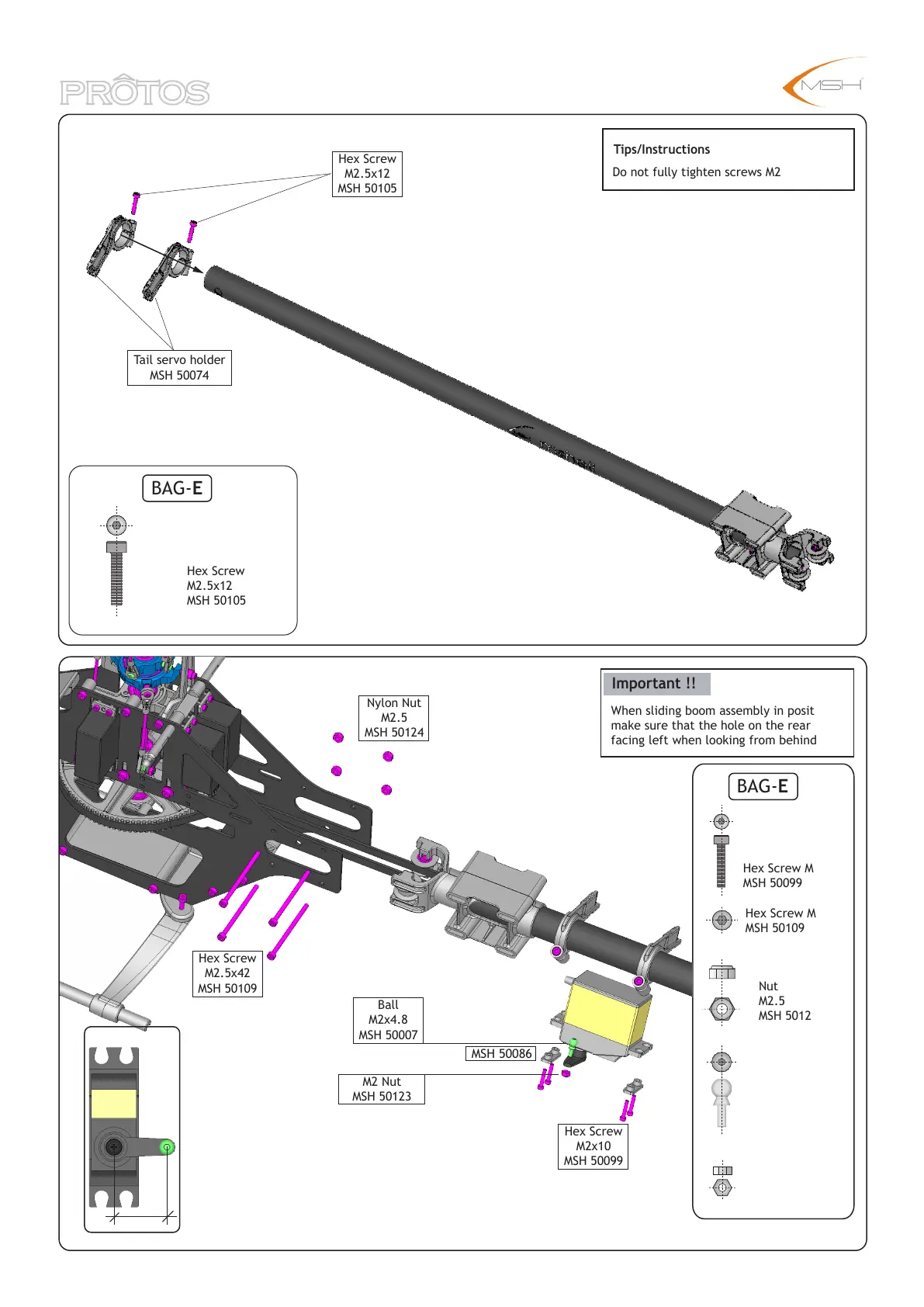

Nylon Nut
M2.5
MSH 50124
M2 Nut
MSH 50123
Hex Screw
M2x10
MSH 50099
Hex Screw
M2.5x42
MSH 50109
Ball
M2x4.8
MSH 50007
MSH 50086
Tips/Instructions
Important !!
Hex Screw
M2.5x12
MSH 50105
Hex Screw
M2.5x12
MSH 50105
Tail servo holder
MSH 50074
BAG-E
Do not fully tighten screws M2.5x12 yet.
When sliding boom assembly in position
make sure that the hole on the rear is
facing left when looking from behind.
BAG-E
Hex Screw M2.5x42
MSH 50109
Hex Screw M2x10
MSH 50099
Nut
M2.5
MSH 50124
13,5 mm
Ball M2x4.8
MSH 50007
M2 Nut
MSH 50123
21
