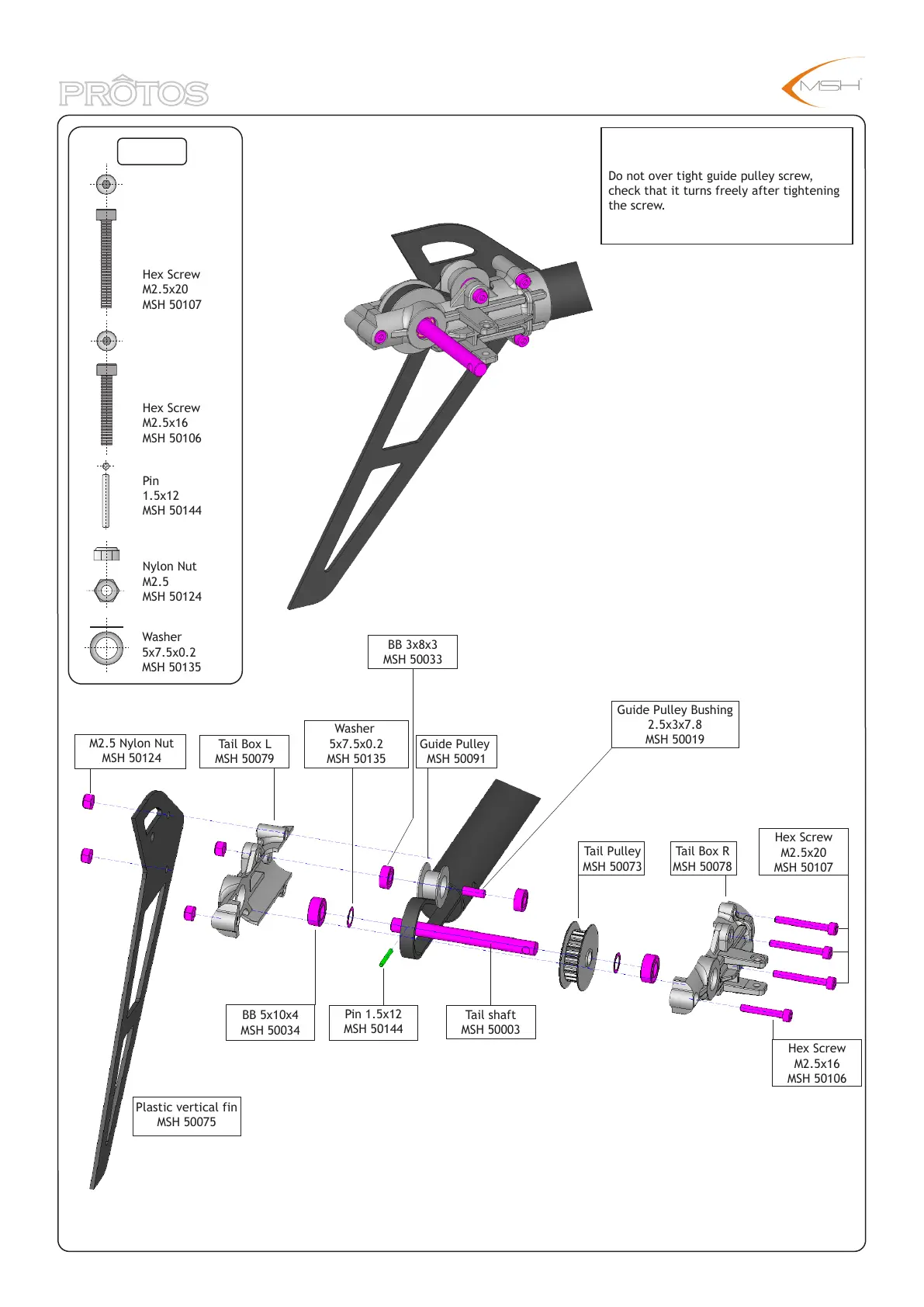

MSH Protos - PROTOS BAG-F Assembly

Tips/Instructions
Do not over tight guide pulley screw,
check that it turns freely after tightening
the screw.
BAG-F
Hex Screw
M2.5x20
MSH 50107
Hex Screw
M2.5x16
MSH 50106
Hex Screw
M2.5x20
MSH 50107
Guide Pulley Bushing
2.5x3x7.8
MSH 50019
Hex Screw
M2.5x16
MSH 50106
Pin
1.5x12
MSH 50144
Pin 1.5x12
MSH 50144
BB 3x8x3
MSH 50033
BB 5x10x4
MSH 50034
Tail Box L
MSH 50079
Tail Box R
MSH 50078
Tail Pulley
MSH 50073
Tail shaft
MSH 50003
Guide Pulley
MSH 50091
Plastic vertical fin
MSH 50075
Nylon Nut
M2.5
MSH 50124
M2.5 Nylon Nut
MSH 50124
Washer
5x7.5x0.2
MSH 50135
Washer
5x7.5x0.2
MSH 50135
