MS-6580 ATX Mainboard
1
2
3
6
7
4
5
Back Panel
S-Bracket
6-Channel Mode for 6-Speaker Output
When this mode is selected, plug the two front speakers to the Line
Out connector on the back panel, and the other two rear speakers to
the Line Out connector on the S-Bracket.

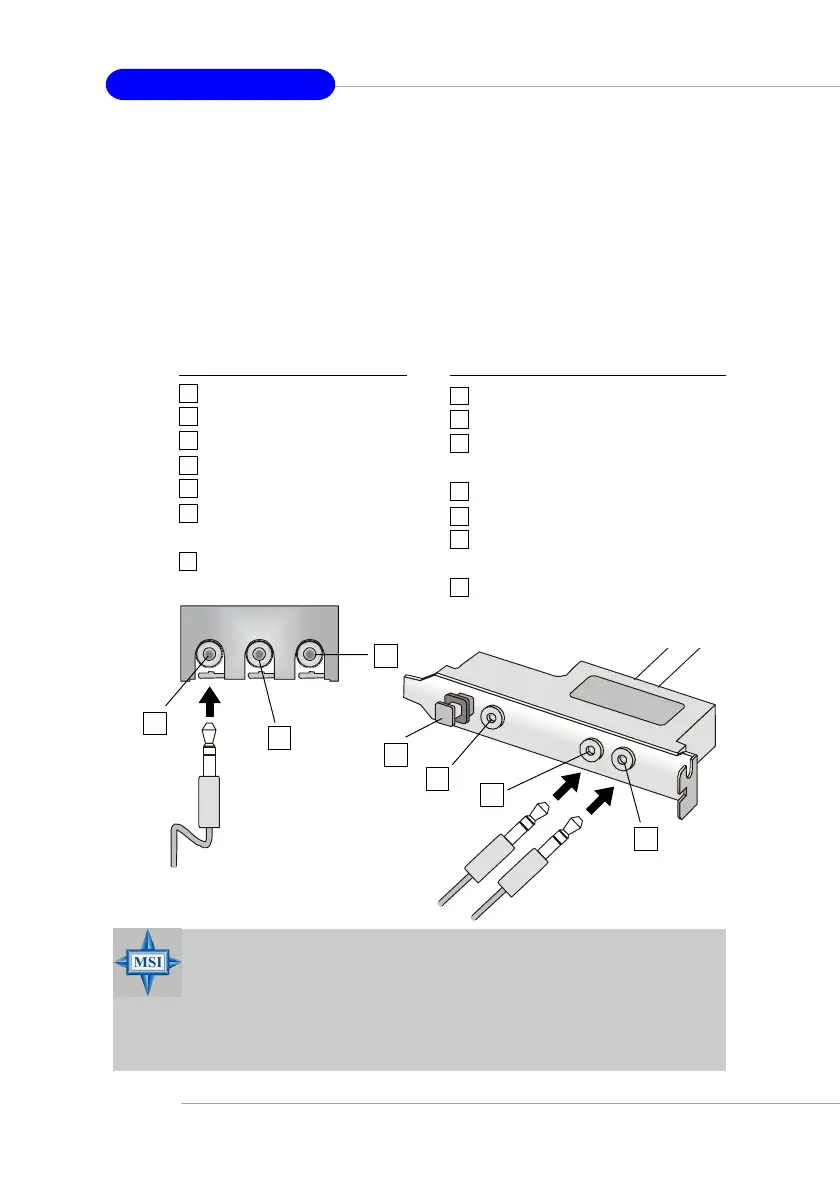

Refer to the following diagram and caption for the function of each
phonejack on the back panel and S-Bracket when 6-Channel mode
is selected.
1 Line Out (Front channels)
2 Line In
3 MIC
4 Optical SPDIF jack
5 Coaxial SPDIF jack
6 Line Out (Center and
Subwoofer channels)
7 Line Out (Rear channels)
Select “Default Phonejack” Deselect “Default Phonejack”
1 Line Out (Front channels)
2 Rear Speaker Out (Rear channels)
3 Center/Subwoofer Speaker Out
(Center and Subwoofer channels)
4 Optical SPDIF jack
5 Coaxial SPDIF jack
6 Line Out (Center and Subwoofer
channels)
7 Line Out (Rear channels)
MSI Reminds You...
If the Center and Subwoofer speaker exchange their audio chan-
nels when you play video or music on the computer, a converter
may be required to exchange center and subwoofer audio
signals. You can purchase the converter from a speaker store.
