A-14
MS-6580 ATX Mainboard
1 MIC
2 * Line Out (Rear channels)
3 Line Out (Front channels)
* Line In function is converted to Line Out function when 4-Channel Mode for
4-Speaker Output is selected.

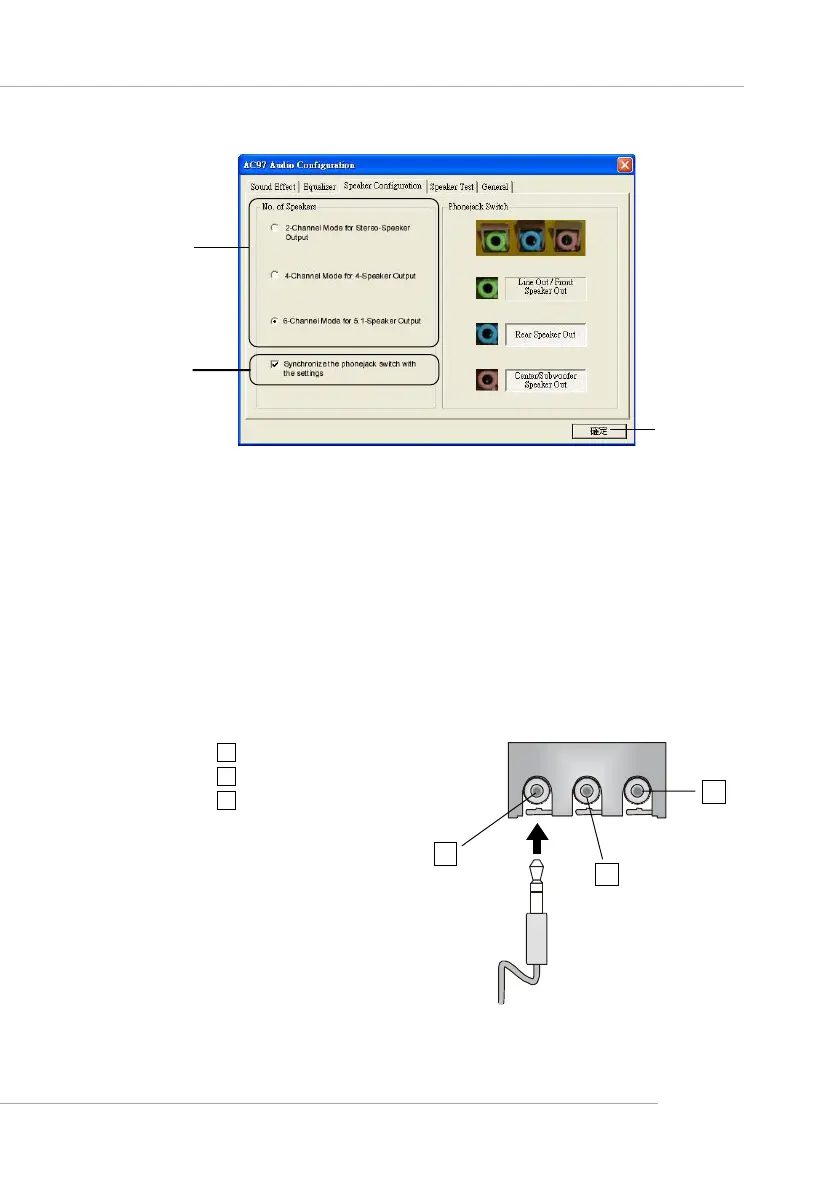

4-Channel Mode for 4-Speaker Output
The audio jacks on the back panel always provide 2-channel analog
audio output function, however these audio jacks can be transformed
to 4- or 6- channel analog audio jacks by selecting the corresponding
multi-channel operation from No. of Speakers.
Refer to the following diagram and caption for the founction of each
jack on the back panel when 4-Channel Mode is selected.
Back Panel
2
3
1
