A-12
MS-6580 ATX Mainboard
1
2
3
1 Line Out (Front channels)
2 * Line Out (Rear channels)
3 MIC
* Line In function is converted to Line Out function when 4-Channel Mode for
4-Speaker Output is selected.

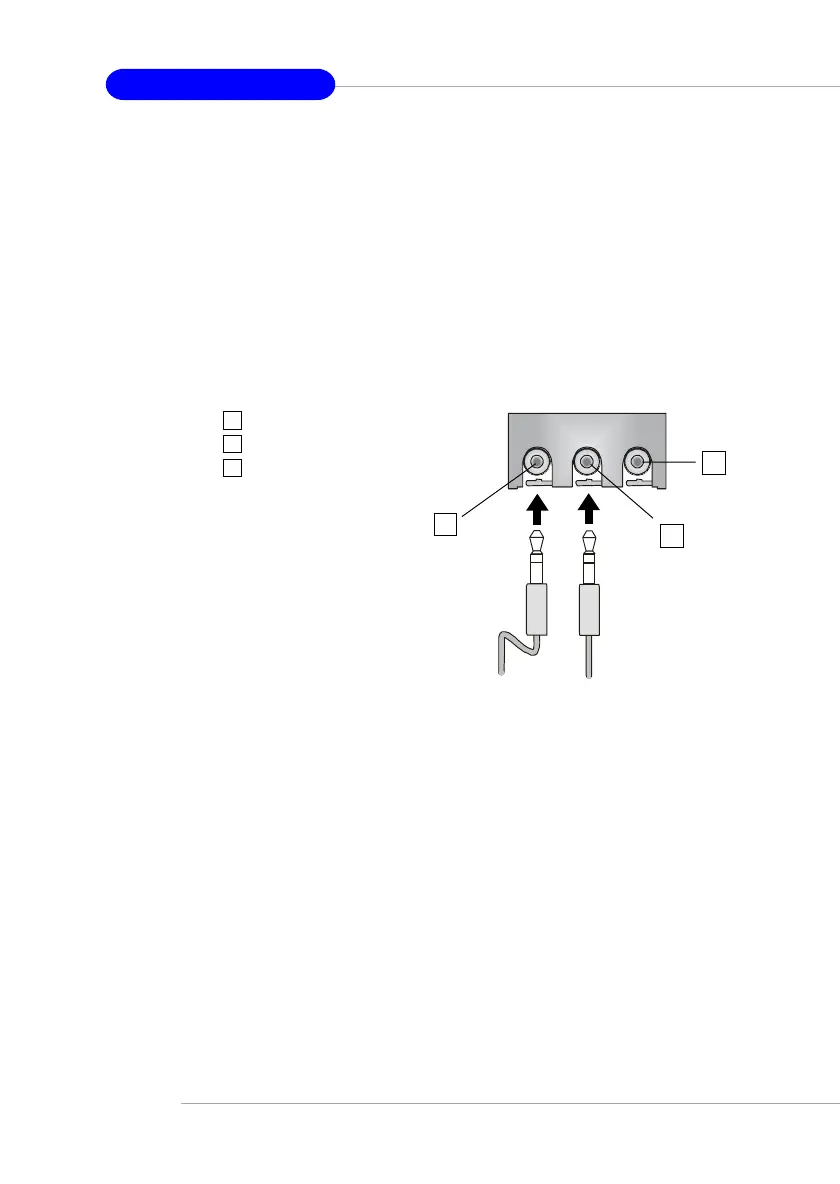

4-Channel Mode for 4-Speaker Output
The audio jacks on the back panel always provide 2-Channel
analog audio output function, however these audio jacks can be
transformed to 4- or 6- channels analog audio jacks by selecting the
corresponding multi-channel operation from No. of Speakers.
Refer to the following diagram and caption for the founction of
each jack on the back panel when 4-Channels mode is selected.
