MS-6728 ATX Mainboard

1 *Line Out (Rear channels)

2 Line Out (Front channels)

3 MIC

4 SPDIF Coaxial jack

* Line In function is converted to

Line Out function when 4-Channel

Mode for 4-Speaker Output is selected.

 4-Channel Mode for 4-Speaker Output

The audio jacks on the back panel always provide 2-channel analog

audio output function, however these audio jacks can be transformed

to 4- or 6- channel analog audio jacks by selecting the corresponding

multi-channel operation from No. of Speakers.

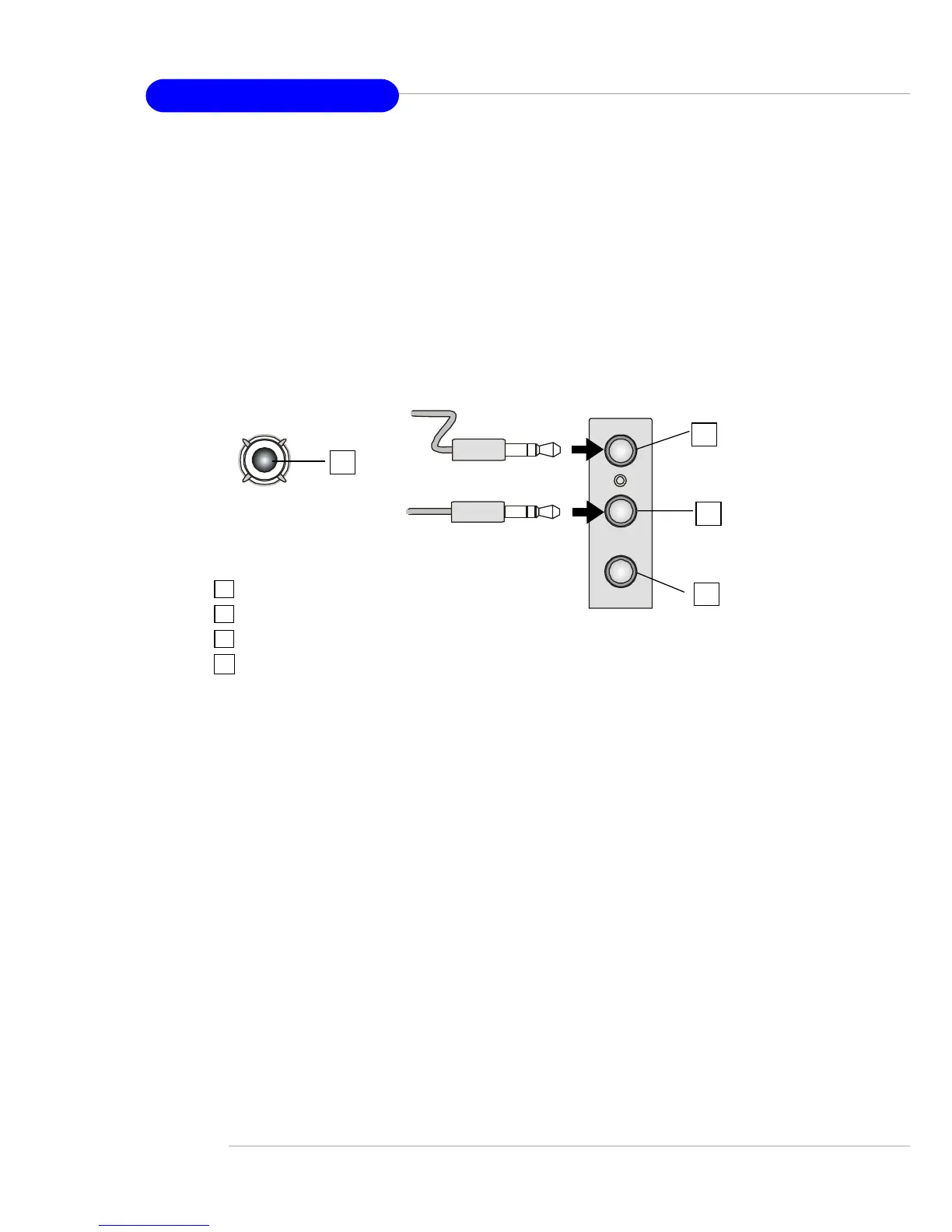

Refer to the following diagram and caption for the function of each

jack on the back panel when 4-Channel Mode is selected.

Back Panel
