2-19
Hardware Setup
MSI Reminds Y
ou...
Please do not fold the serial ATA cable in a 90-degree angle,
which will cause the loss of data during the transmission.
PIN
SIGNAL
PIN
SIGNAL
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND

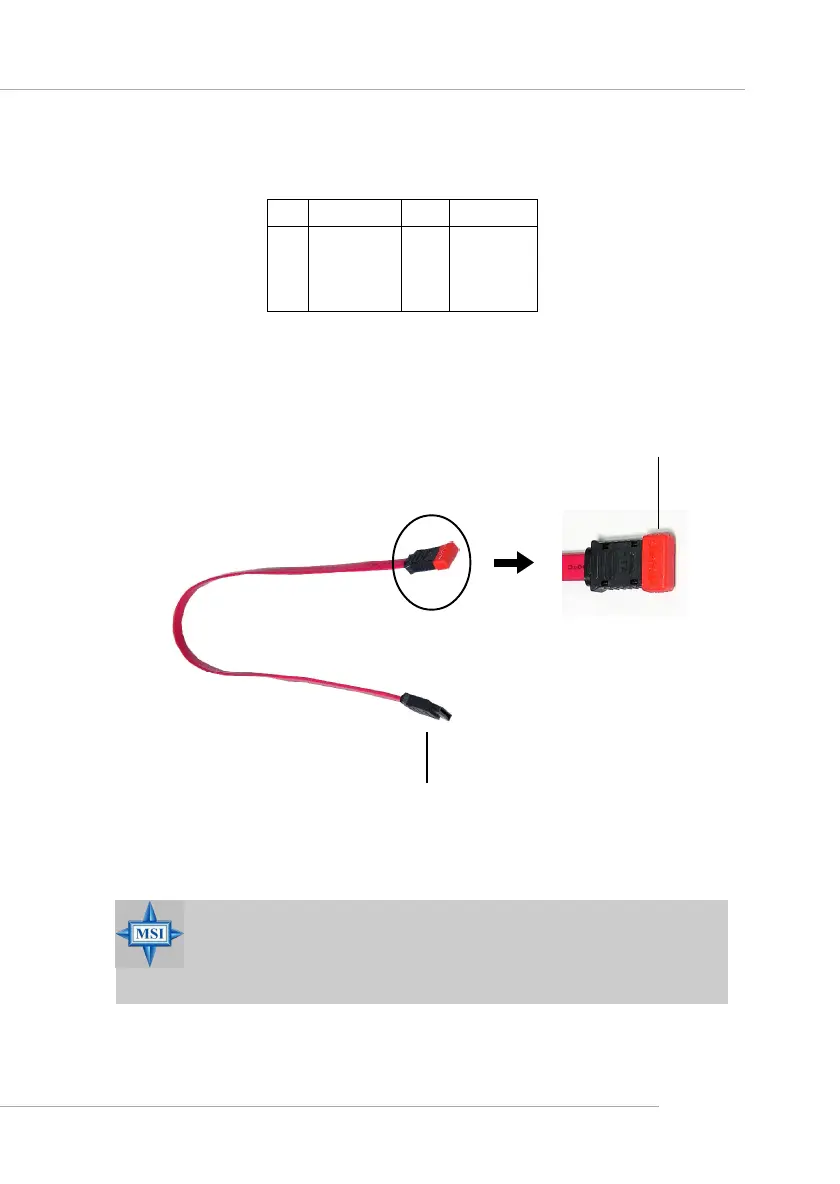

SER1~ SER4 Pin Definition
Connect to serial A
T
A ports
Take out the dust cover and
connect to the hard disk
devices
Optional Serial ATA cable
39
41
