2-27
Hardware Setup
+

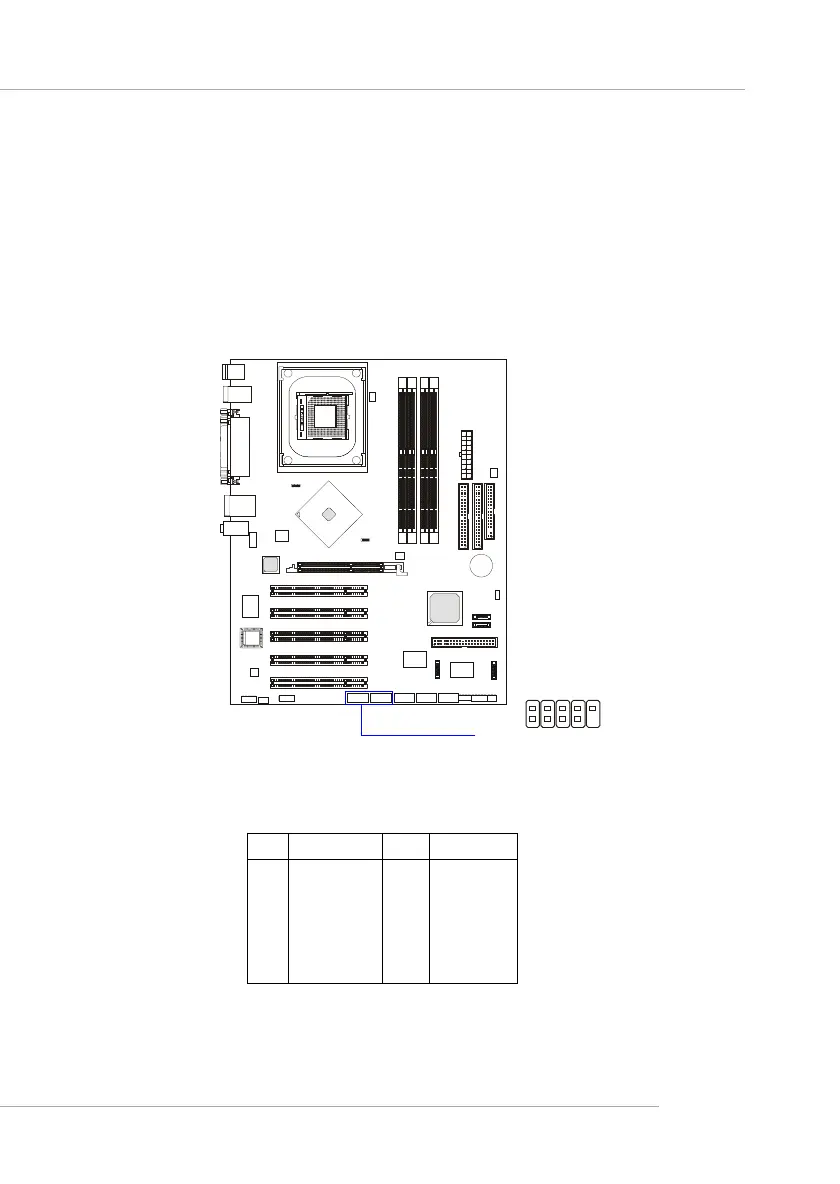

Front USB Connectors: JUSB2, JUSB3 (Optional)
The mainboard provides one USB 2.0 pin header JUSB2 and one optional
USB 2.0 pin header JUSB3 that are compliant with Intel
®
I/O Connectivity
Design Guide. USB 2.0 technology increases data transfer rate up to a maximum
throughput of 480Mbps, which is 40 times faster than USB 1.1, and is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital
cameras, MP3 players, printers, modems and the like.
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key (no pin) 10 USBOC
JUSB2 & JUSB3 Pin Definition
JUSB3 (Optional), JUSB2
(USB 2.0/Intel spec)
1 9
2
10
To Next Page
