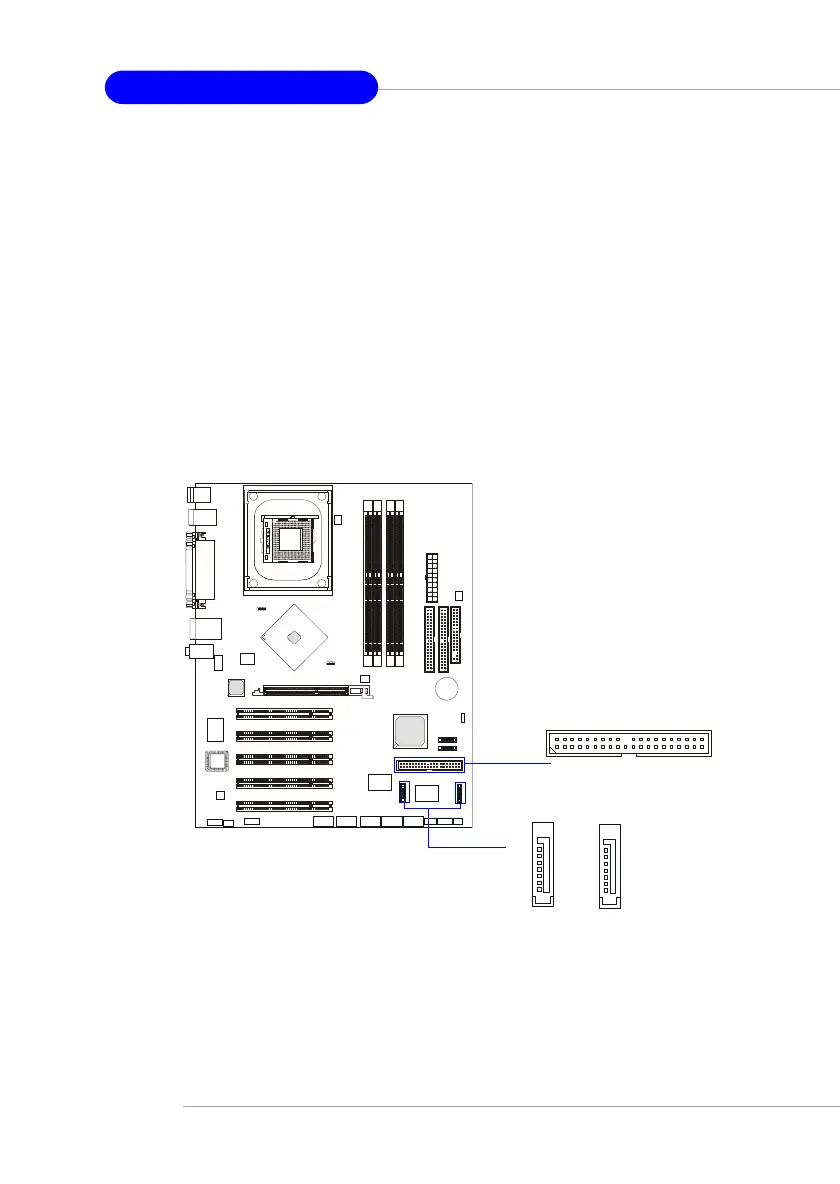

MS-6758 ATX Mainboard
+
SER3
IDE3
7
1
SER4
Serial ATA/Serial ATA RAID Connectors controlled by Prom-
ise 20378: IDE3, SER3 & SER4 (Optional)
The brand new Promise 20378 chipset supports one IDE connector IDE3
and two serial connectors SER3& SER4.
IDE3 is a 32-bit Enhanced PCI IDE and Ultra DMA 66/100/133 controller
that provides PIO mode 0~6, Bus Master, and Ultra DMA 66/100/133 function.
You can connect up to 2 hard disk drives---one IDE master and one IDE slave.
And SER3 & SER4 are dual high-speed Serial ATA interface ports. Each
supports 1
st
generation serial ATA data rates of 150 MB/s. Both connectors are
fully compliant with Serial ATA 1.0 specifications. Each Serial ATA connector
can connect to 1 hard disk device. Please refer to Serial ATA/Serial ATA Raid
manual for detail software installation procedure.
