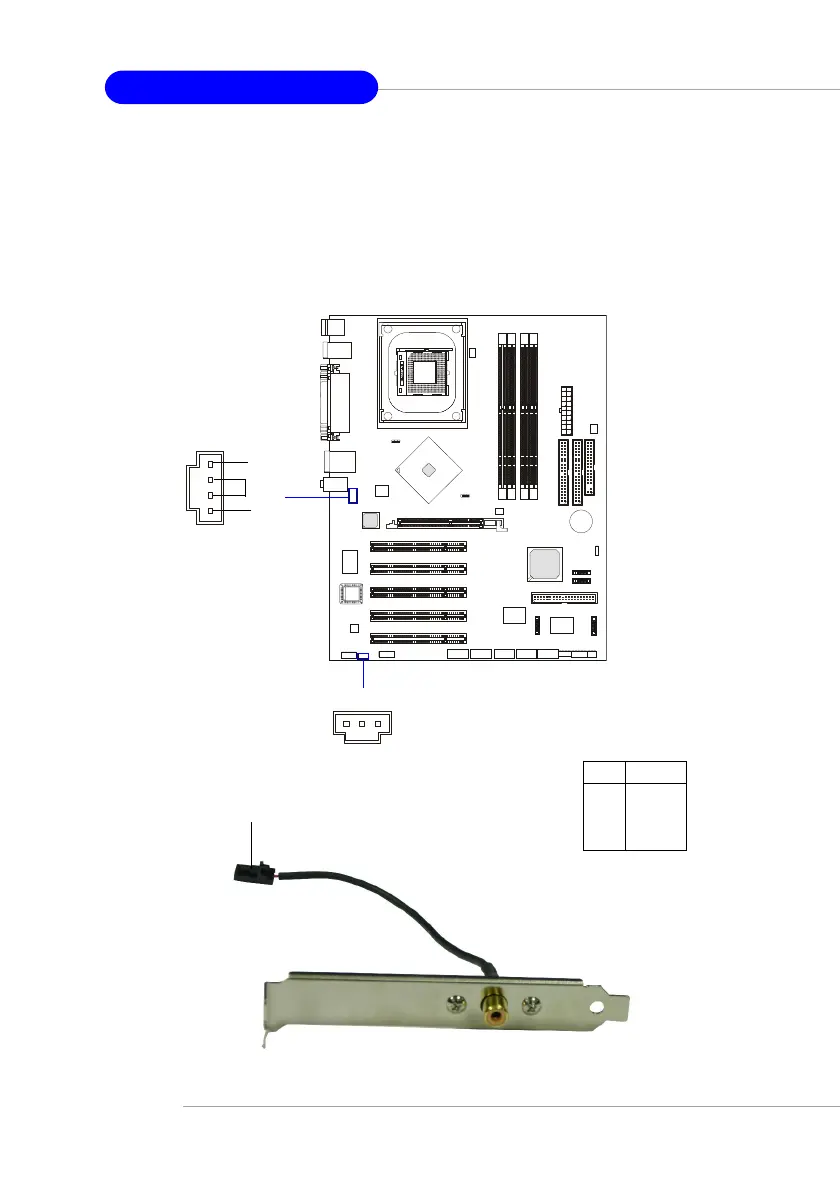

2-20
MS-6758 ATX Mainboard
+
CD-In Connector: JCD1
The connector is for CD-ROM audio connector.
JCD1
GND
L
R
SPDIF Connector: JSP1
The connector is used to connect SPDIF (Sony & Philips Digital Inter-
connect Format) interface for digital audio transmission.
1
VCC
2
SPDIF
3N
C
JSP1 Pin Definition
PIN
SIGNAL
JSP1
1
3
Connected to JSP1
SPDIF Bracket
40
42
