MSI B360M ICAFE User Manual

10
Rear I/O Panel

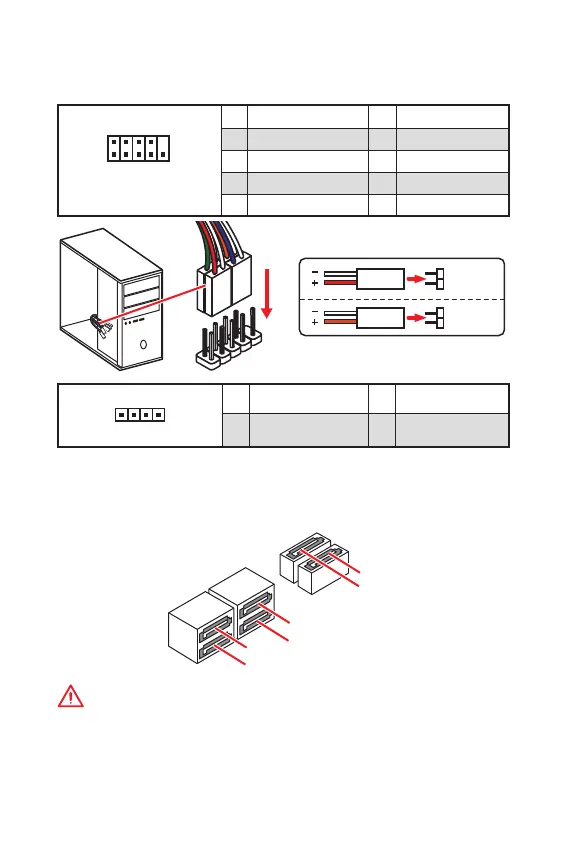

SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA3
SATA5
SATA4
SATA1
SATA2
SATA6
Important
y Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
y SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
JFP1

MSI B360M ICAFE Specifications

General

Chipset	Intel B360
Form Factor	Micro-ATX
CPU Socket	LGA 1151
Maximum Memory	64 GB
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC887
Memory Slots	4
Storage Interface	6 x SATA 6Gb/s, 1 x M.2
LAN	Realtek RTL8111H
