MSI B360M ICAFE User Manual

7

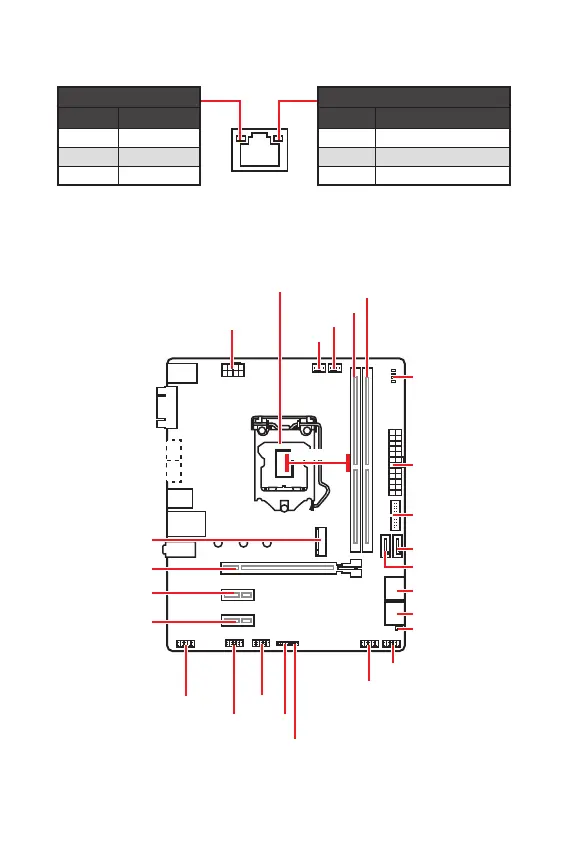

Rear I/O Panel Overview of Components
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Overview of Components
CPU_FAN1
ATX_PWR1
EZ Debug LED
CPU Socket
PCI_E1
SYS_FAN1
PCI_E2
PCI_E3
M2_1
JCI1
DIMMA1
DIMMB1
SATA1
SATA2
JBAT1
JFP1
JFP2
CPU_PWR1
JUSB2
JUSB1
JUSB3
JCOM1
JAUD1
SATA34
SATA56
* Distance from the center of the CPU to the nearest DIMM slot.
50.83mm*

MSI B360M ICAFE Specifications

General

Chipset	Intel B360
Form Factor	Micro-ATX
CPU Socket	LGA 1151
Maximum Memory	64 GB
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC887
Memory Slots	4
Storage Interface	6 x SATA 6Gb/s, 1 x M.2
LAN	Realtek RTL8111H
