MSI B360M ICAFE User Manual

12
Rear I/O Panel

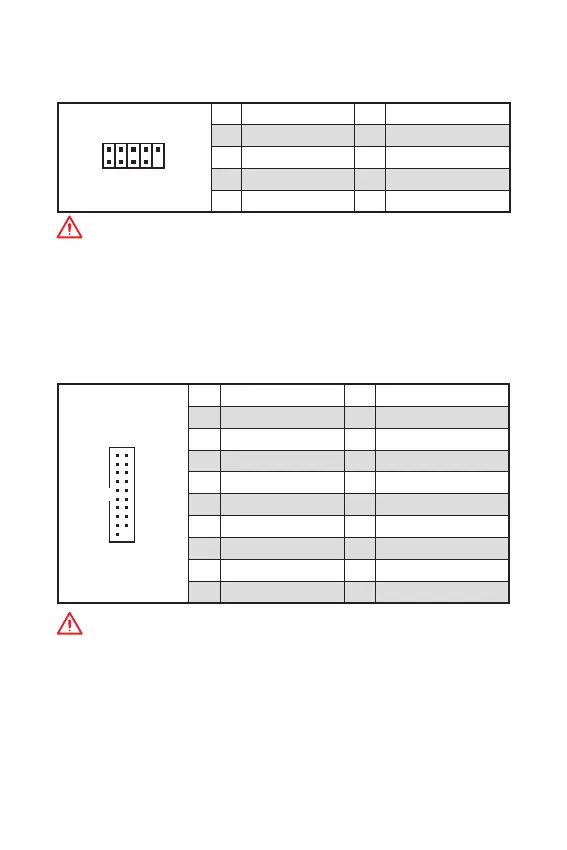

JUSB3: USB 3.1 Gen1 Connector
These connectors allow you to connect USB 3.1 Gen1 ports on the front panel.
1
10
11
20
1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 NC 20 No Pin
Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
JUSB1, JUSB2: USB 2.0 Connectors
These connectors allow you to connect USB 2.0 ports on the front panel.
1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
Important
y Note that the VCC and Ground pins must be connected correctly to avoid possible
damage.
y In order to recharge your iPad,iPhone and iPod through USB ports, please install
MSI
®
SUPER CHARGER utility.

MSI B360M ICAFE Specifications

General

Chipset	Intel B360
Form Factor	Micro-ATX
CPU Socket	LGA 1151
Maximum Memory	64 GB
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC887
Memory Slots	4
Storage Interface	6 x SATA 6Gb/s, 1 x M.2
LAN	Realtek RTL8111H
