16
Overview of Components

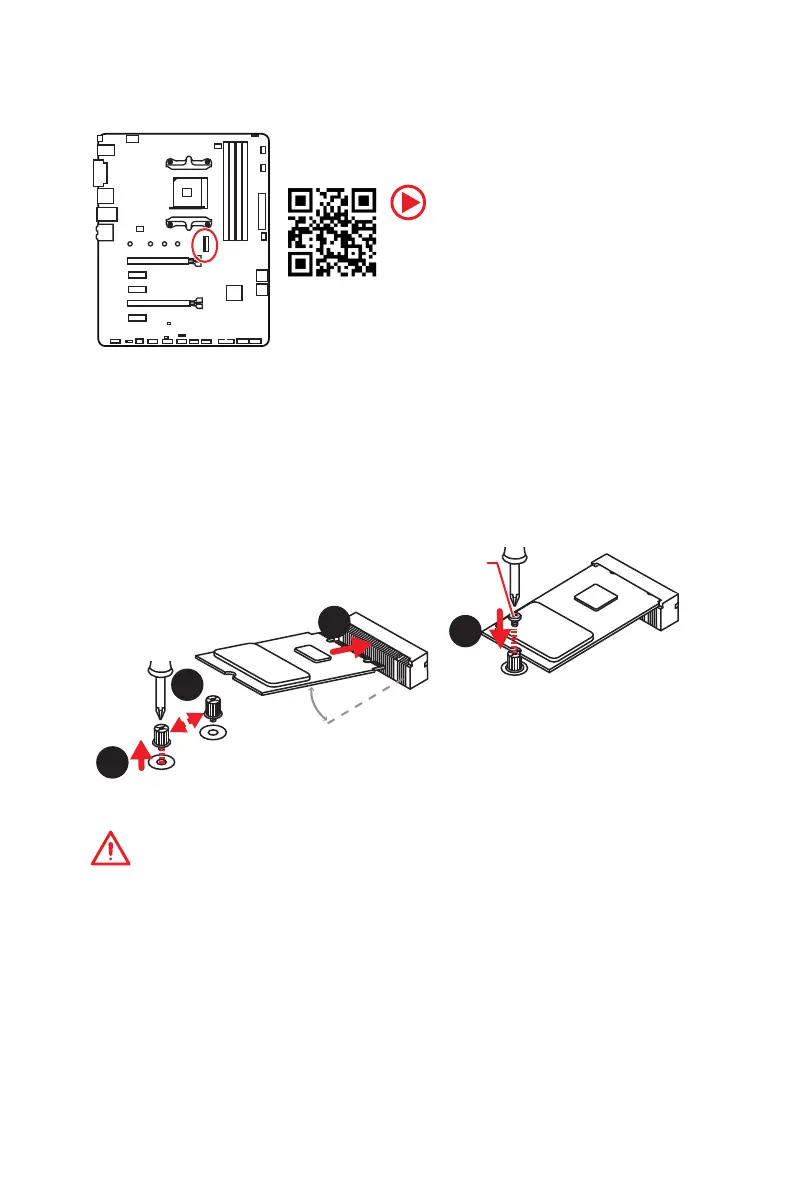

M2_1: M.2 Slot (Key M)
1
2
3
30°
Installing M.2 SSD
1. Loosen the M.2 riser screw from the
motherboard.
2. Move and fasten the M.2 riser screw to
the appropriate location for your M.2
SSD.
3. Insert your M.2 SSD into the M.2
slot at a 30-degree angle.
4. Secure the M.2 SSD in place with
the supplied M.2 screw.
4
Supplied
M.2 screw
Video Demonstration
Watch the video to learn how to Install M.2
module.
http://youtu.be/JCTFABytrYA
Important
SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
