Overview of Components

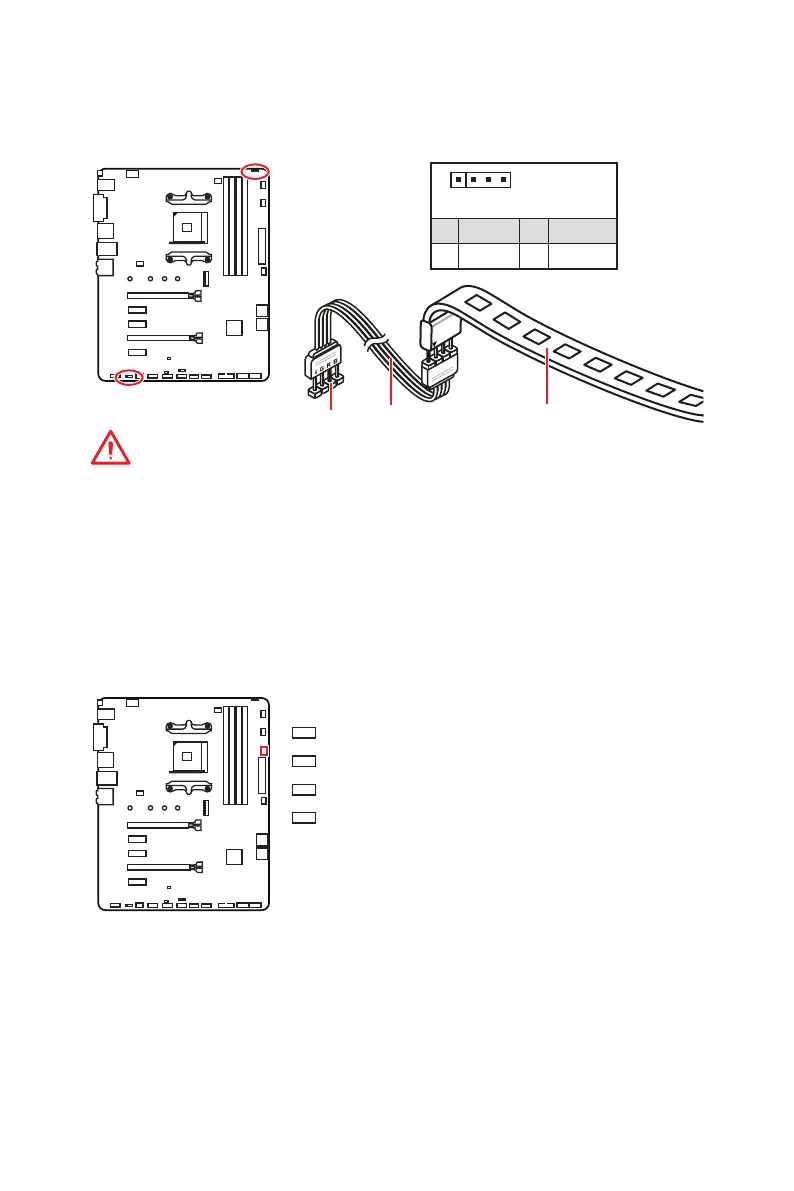

JRGB1~2: RGB LED connectors

The JRGB1/2 connectors allow you to connect the 5050 RGB LED strips 12V.

Important

The JRGB1/ JRGB2 connector supports up to 2 meters continuous 5050 RGB LED

strips (12V/G/R/B) with the maximum power rating of 3A (12V).

Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing the RGB LED strip.

Please use MSI’s software to control the extended LED strip.

JRGB1/2

JRGB1

Extension cable

5050 RGB LED strips 12V

JRGB1/2

1 +12V 2 G

3 R 4 B

JRGB2

EZ Debug LEDs

These LEDs indicate the status of key components during booting process. When an

error is occurred, the corresponding LED stays lit until the problem is solved.

CPU - indicates CPU is not detected or fail.

DRAM - indicates DRAM is not detected or fail.

VGA - indicates GPU is not detected or fail.

BOOT - indicates the booting device is not detected

or fail.
