FX5700-TD256/TD128

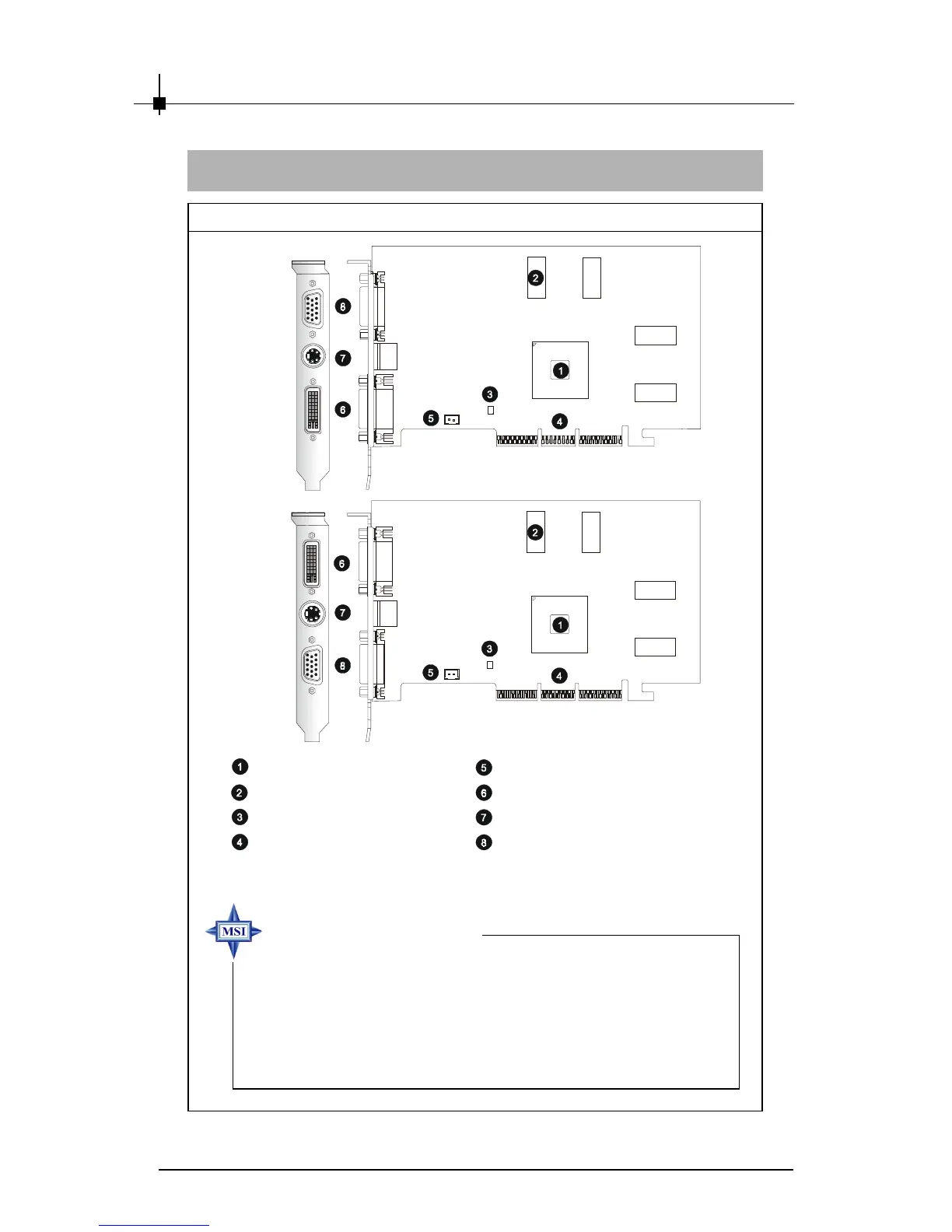

Layout
TypeA
TypeB
nVIDIA GeForce FX GPU
256MB/128MB DDR RAM
Flash-BIOS
AGP Interface
Fan Connector
DVI-I Connector
TV_Out Connector (S)
D-Sub Port (DB 15-Pin)
MSI reminds you...
For those users who purchase Type A VGA card, please follow
the steps listed below to connect dual monitors if needed:
1. Attach the supplied DVI-I / VGA Adapter to the DVI connector
of the VGA card, and then connect the first monitor to it.
2. Now, connect the second monitor to TV_Out / Video_In Con-
nector or D-Sub Port.
