Hardware Installation
3-5

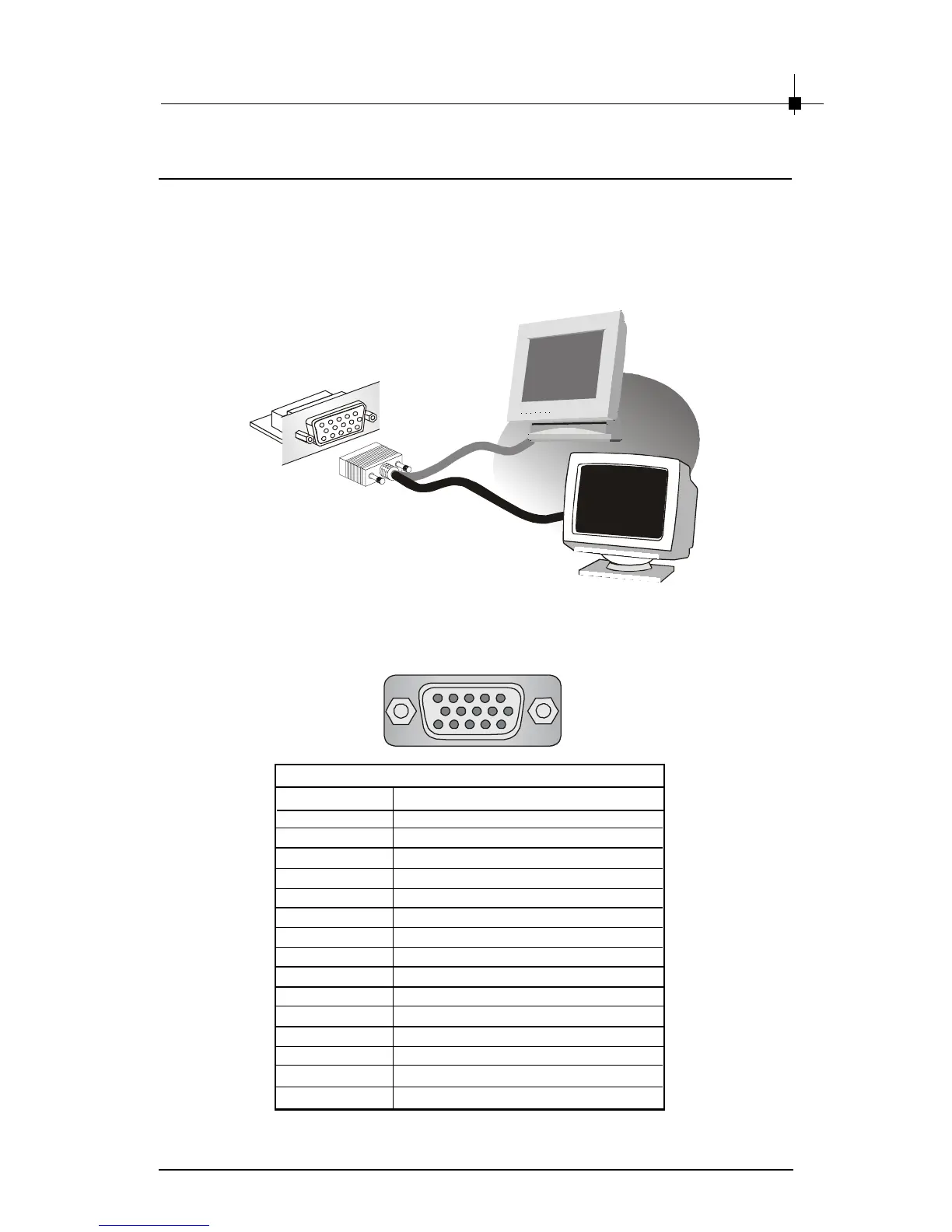

3.2 D-Sub Port (DB 15-Pin)
The VGA card provides a standard D-Sub Port, which allows you to connect a
CRT or LCD monitor. Simply plug your monitor cable into the D-Sub Port on
your VGA card, and make sure that the other end of the cable is properly
connected to your monitor (refer to your monitor manual for more information.)
LCD Monitor
D-Sub Port
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
D-Sub Port (DB15-S)
Pin Signal Description
Red
Green
Blue
Not used
Ground
Ground
Ground
Ground
5V
Ground
Not used
SDA
Horizontal Sync
Vertical Sync
SCL
1
1115
5
D-Sub Port Pin Definition
CRT Monitor
OR
To Next Page
