3.4 TV_Out Connector (C)

The VGA card provides a TV_Out connector for video-out function which al-

lows you to output the image to a TV or video device. Simply plug one end of

the RCA cable into the TV_Out connector on the VGA card, and the other end

to the video input connector on your TV or video device. Most TVs and video

devices support such kind of input connector. For the correct connection,

please refer to the TVs and video devices' manuals for more information.

3.5 TV_Out Connector (S)

The VGA card provides a TV_Out connector for video-out function which al-

lows you to output the image to a TV or video device. Simply plug one end of

the S_Video cable into the TV_Out connector on the VGA card, and the other

end to the video input connector on your TV or video device. Some TVs and

video devices may support such kind of input connector. For the correct

connection, please refer to the TVs and video devices' manuals for more

information.

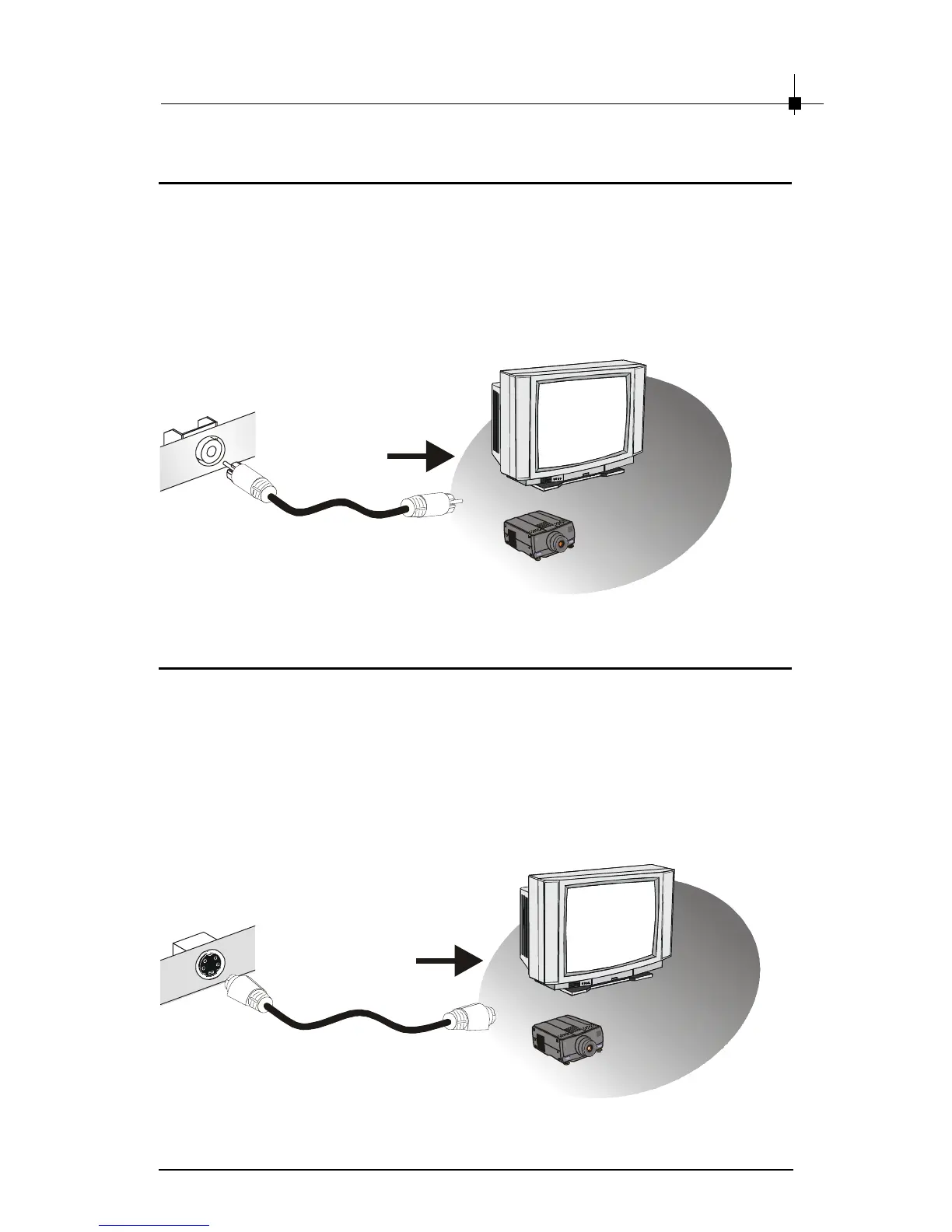

TV_Out

Connector (S)

TV_Out

Connector (C)
