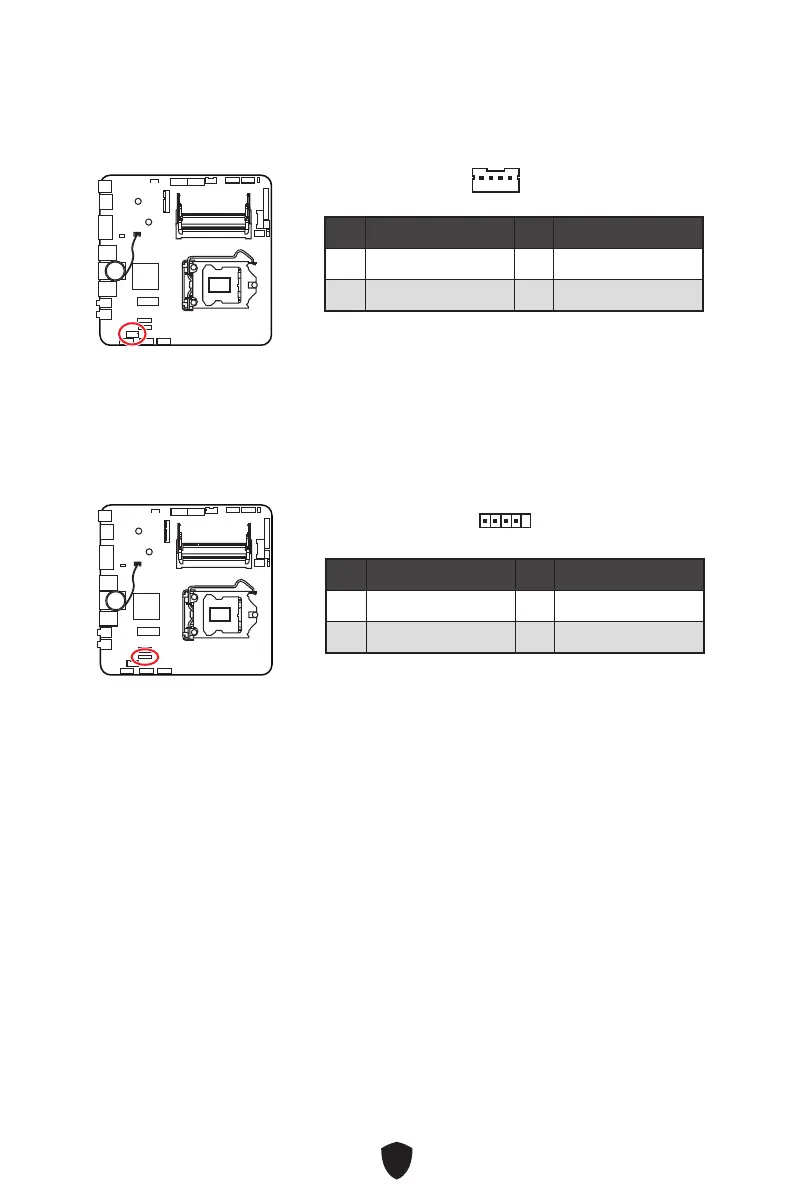

JDMIC1: Digital Microphone Connector
This connector is used to connect to the digital microphone.
1
1
Pin Signal Name Pin Signal Name
1 AMP_L- 2 AMP_L+
3 AMP_R+ 4 AMP_R-
JAMP1: Audio Amplifier Connector
The JAMP1 is used to enhance audio performance by connecting audio amplifiers.
Pin Signal Name Pin Signal Name
1 VCC3 2 DMIC_DATA
3 DMIC_CLK 4 Ground
