En-9
MS-7680 Mainboard
English
Mainboard
Hook
Important
Read the CPU status in BIOS.
Whenever CPU is not installed, always protect your CPU socket pin with the plastic
cap covered (shown in Figure 1) to avoid damaging.
Mainboard photos shown in this section are for demonstration of the CPU/ cooler in-
stallation only. The appearance of your mainboard may vary depending on the model
you purchase.
Please refer to the documentation in the CPU fan package for more details about the
CPU fan installation.
•
•
•
•

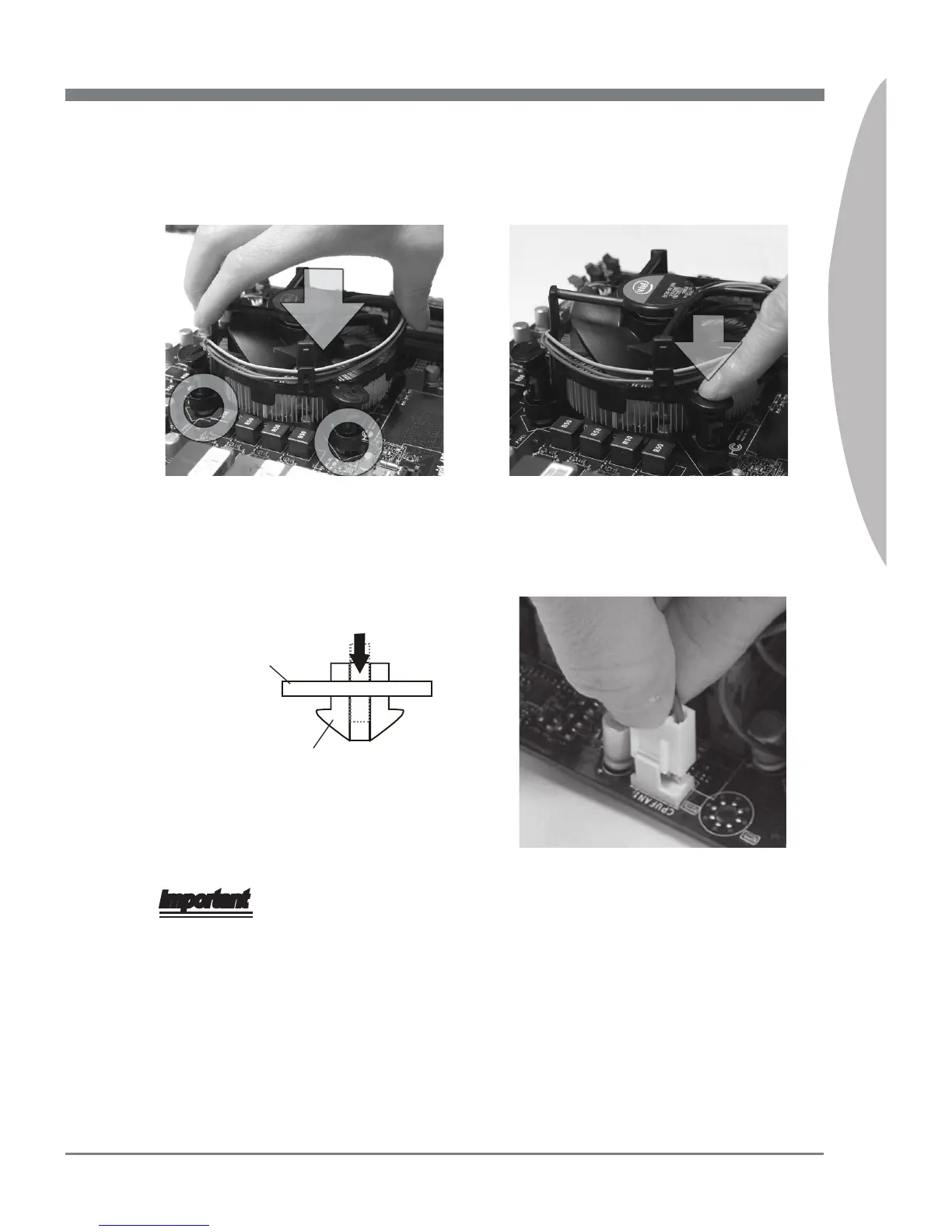

Align the holes on the mainboard with
the heatsink. Push down the cooler
until its four clips get wedged into the
holes of the mainboard.
9. Press the four hooks down to fasten
the cooler.
10.
Turn over the mainboard to conrm
that the clip-ends are correctly in-
serted.
11. Finally, attach the CPU Fan cable to
the CPU fan connector on the main-
board.
