MSI H67MS-E23 B3 series - Quick Components Guide

En-4
MS-7680 Mainboard
English
MS-7680 Mainboard
English

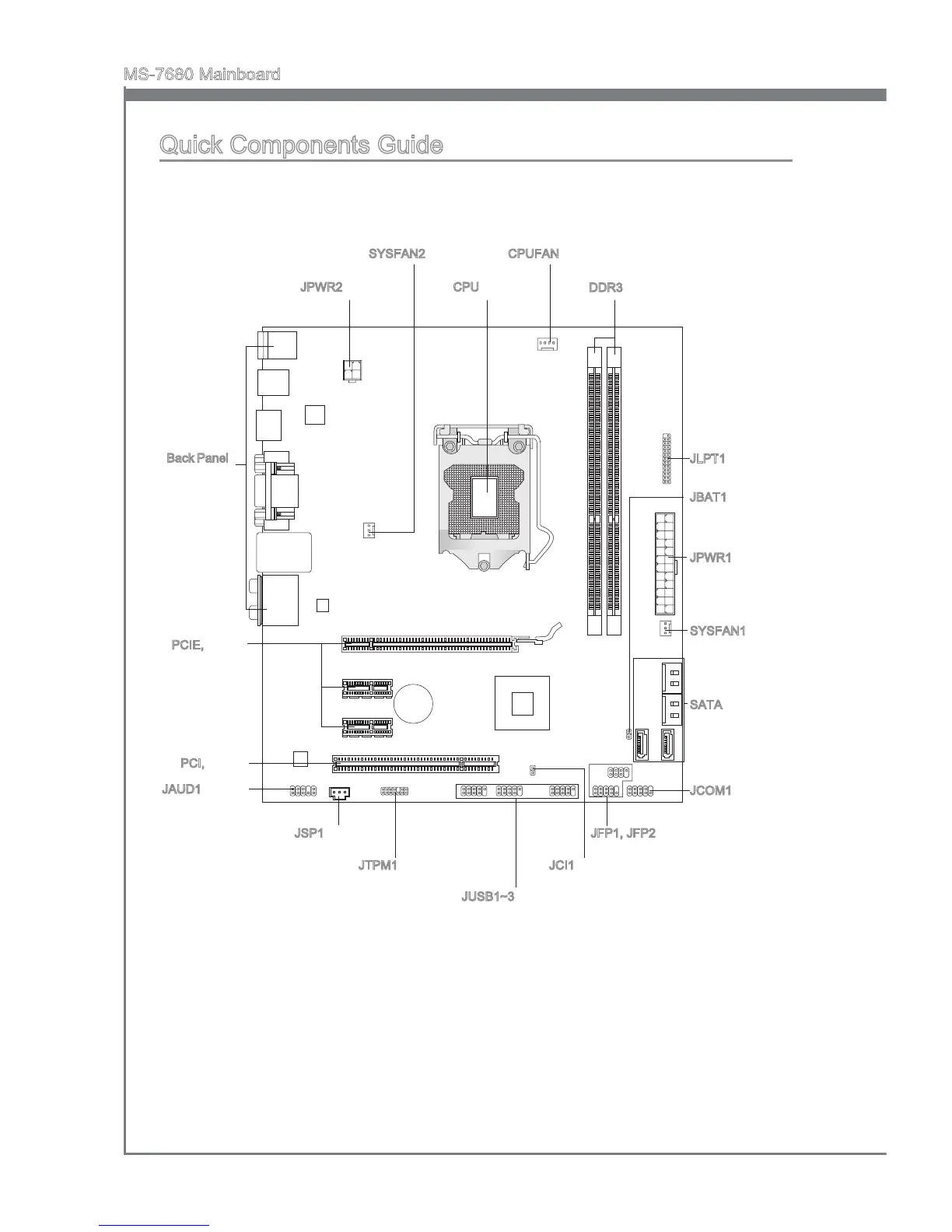

Quick Components Guide
Back Panel,
En-13
CPU, En-6
CPUFAN, En-16
DDR3, En-10
JPWR2, En-12
PCIE, En-22
SYSFAN1, En-16
SYSFAN2, En-16
JAUD1, En-17
JSP1, En-18
JTPM1, En-19 JCI1, En-20
JBAT1, En-21
JUSB1~3, En-17
JFP1, JFP2, En-16
SATA, En-15
JPWR1, En-12
JCOM1, En-18
JLPT1, En-20
PCI, En-22
