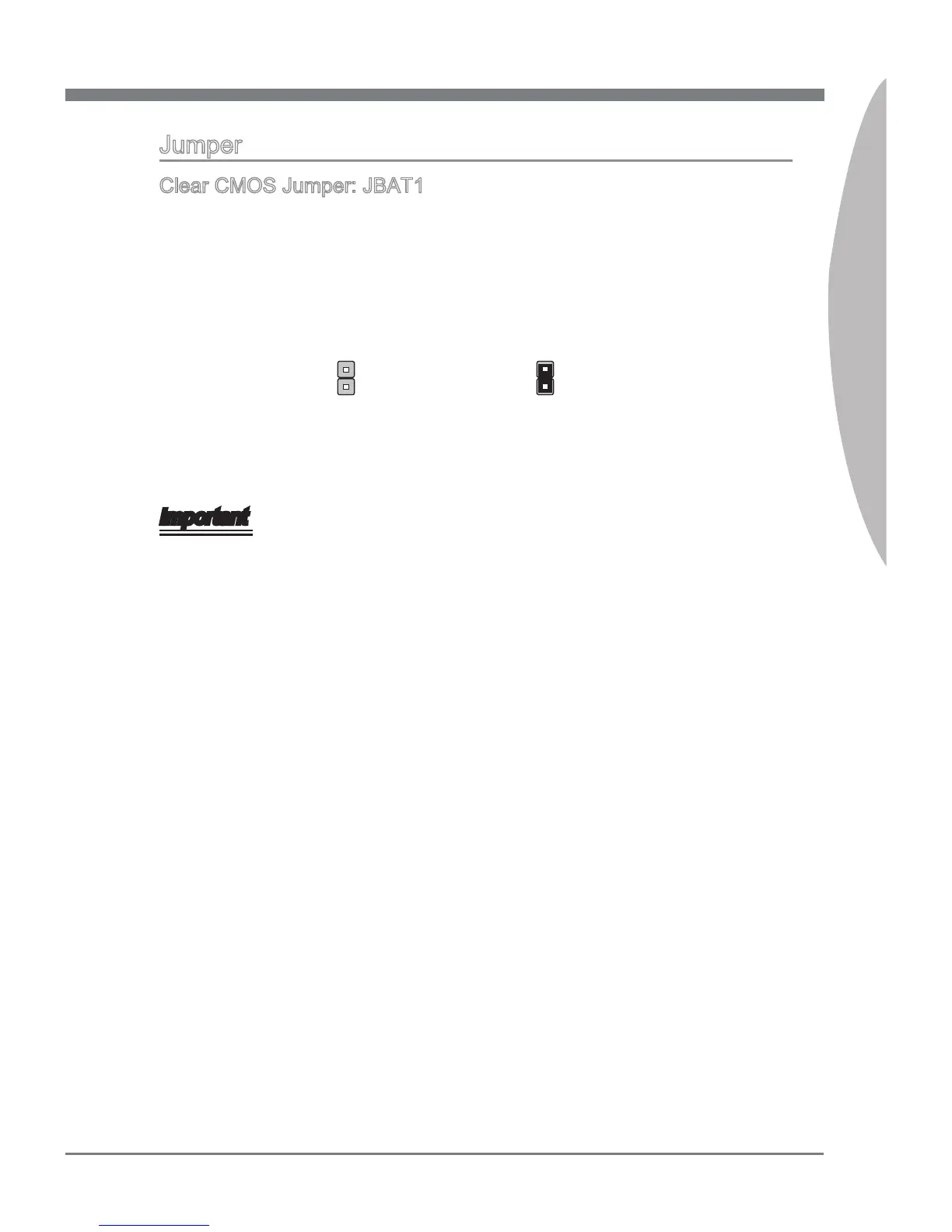

Jumper
Clear CMOS Jumper: JBAT1
There is a CMOS RAM on board with an external battery power supply to preserve the
system con󰘰guration data. With the CMOS RAM, the system can automatically boot
OS every time it is turned on. If you want to clear the system con󰘰guration, please
temporarily short these two pins to clear data by using a metal object.
Important
You can clear CMOS by touching two pins once with a metal object while the system is
o󰘯. Avoid clearing the CMOS while the system is on; it will damage the mainboard.
Keep Data Clear Data
(Use a metal object to
temporarily short these
two pins.)
