3-11
BIOS Setup
On-Chip IDE Controller
This item allows you to enable/ disable the IDE controller.
PCI IDE BusMaster
This item allows you to enable/ disable BIOS to used PCI busmastering for
reading/ writing to IDE drives.
On-Chip SATA Controller
This item allows you to enable/ disable the SATA controller.
RAID mode
Select [RAID] will enable RAID function. Select [AHCI] to enable the AHCI (Advanced
Host Contoller Interface) function. Select [IDE] to configure the SATA device as
IDE device and without AHCI fucntion.
I/O Devices

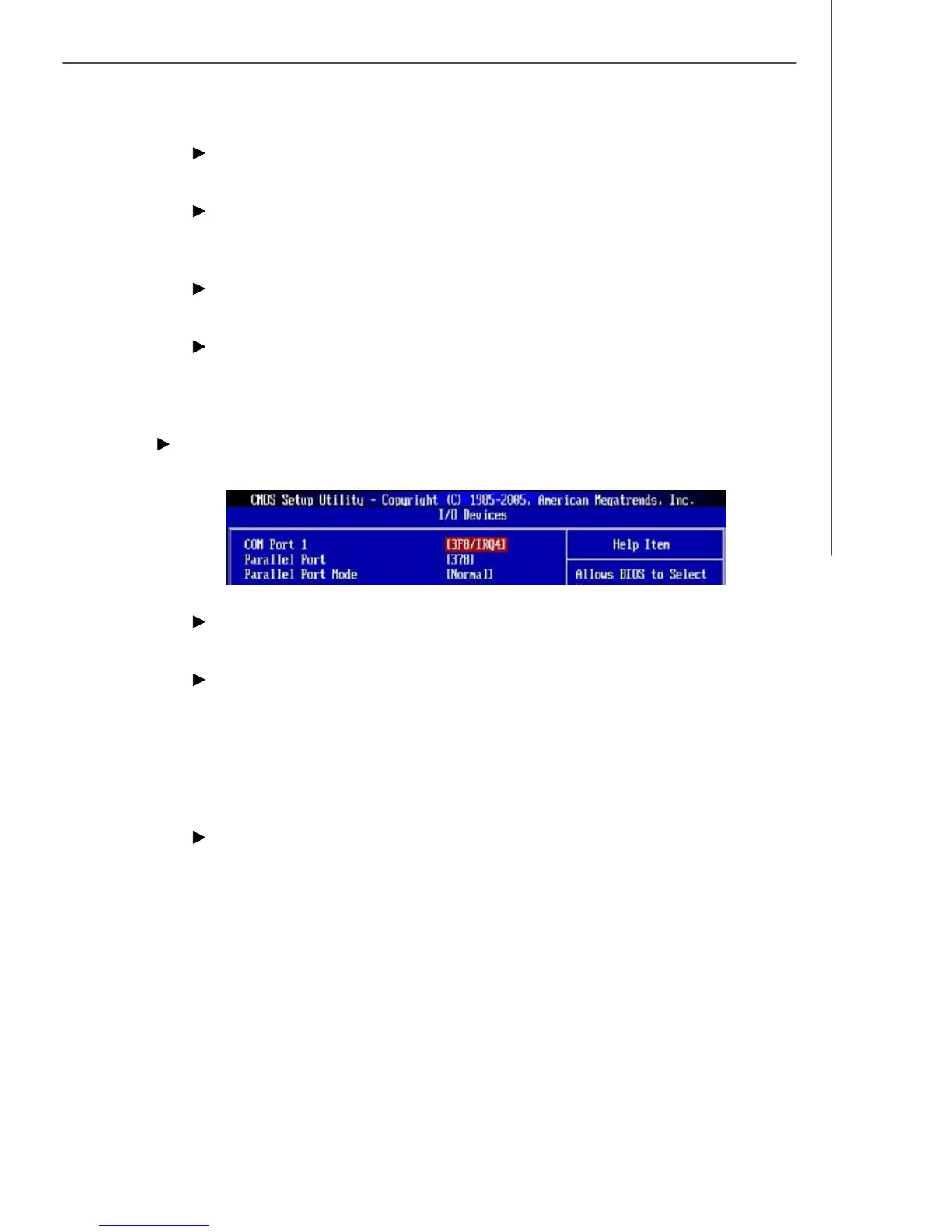

Press <Enter> to enter the sub-menu and the following screen appears:
COM Port 1
Select an address and corresponding interrupt for the first serial port.
Parallel Port
There is a built-in parallel port on the on-board Super I/O chipset that provides
Standard, ECP, and EPP features. It has the following options:
[Disabled]
[3BC/IRQ7] Line Printer port 0
[278/IRQ5] Line Printer port 2
[378/IRQ7] Line Printer port 1
Parallel Port Mode
[Normal] Stardand Parallel Port
[EPP] Enhanced Parallel Port
[ECP] Extended Capability Port
[Bi-Directional]Extended Capability Port + Enhanced Parallel Port
To operate the onboard parallel port as Standard Parallel Port only, choose
[Normal]. To operate the onboard parallel port in the EPP mode simultaneously,
choose [EPP]. By choosing [ECP], the onboard parallel port will operate in ECP
mode only. Choosing [Bi-Direction] will allow the onboard parallel port to support
both the ECP and EPP modes simultaneously.
