MSI MD 5000 - Back Panel Connectors

2-10
MD-5000 M-ATX Mainboard

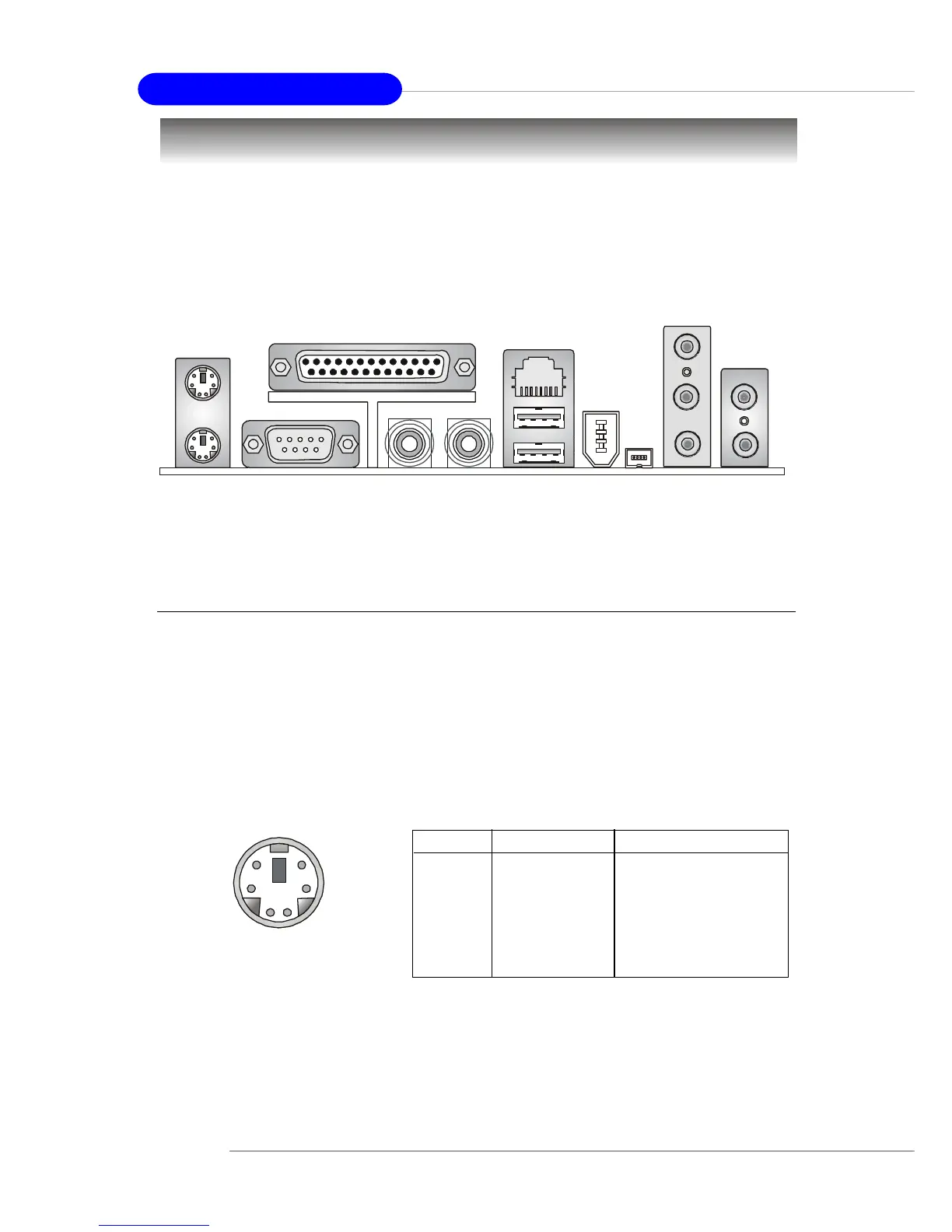

The back panel provides the following connectors:
Back Panel
Mouse Connector
The mainboard provides a standard PS/2
®
mouse mini DIN connector
for attaching a PS/2
®
mouse. You can plug a PS/2
®
mouse directly into this
connector. The connector location and pin assignments are as follows:
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
PS/2 Mouse (6-pin Female)
2
1
3
4
5
6
Keyboard
USB
COM A
SPDIF-
in
Mouse
Parallel
LAN
(Optional)
SPDIF-
out
6 Channel
L-out
L-in
IEEE1394
Ports
MIC
