2-20
MD-5000 M-ATX Mainboard

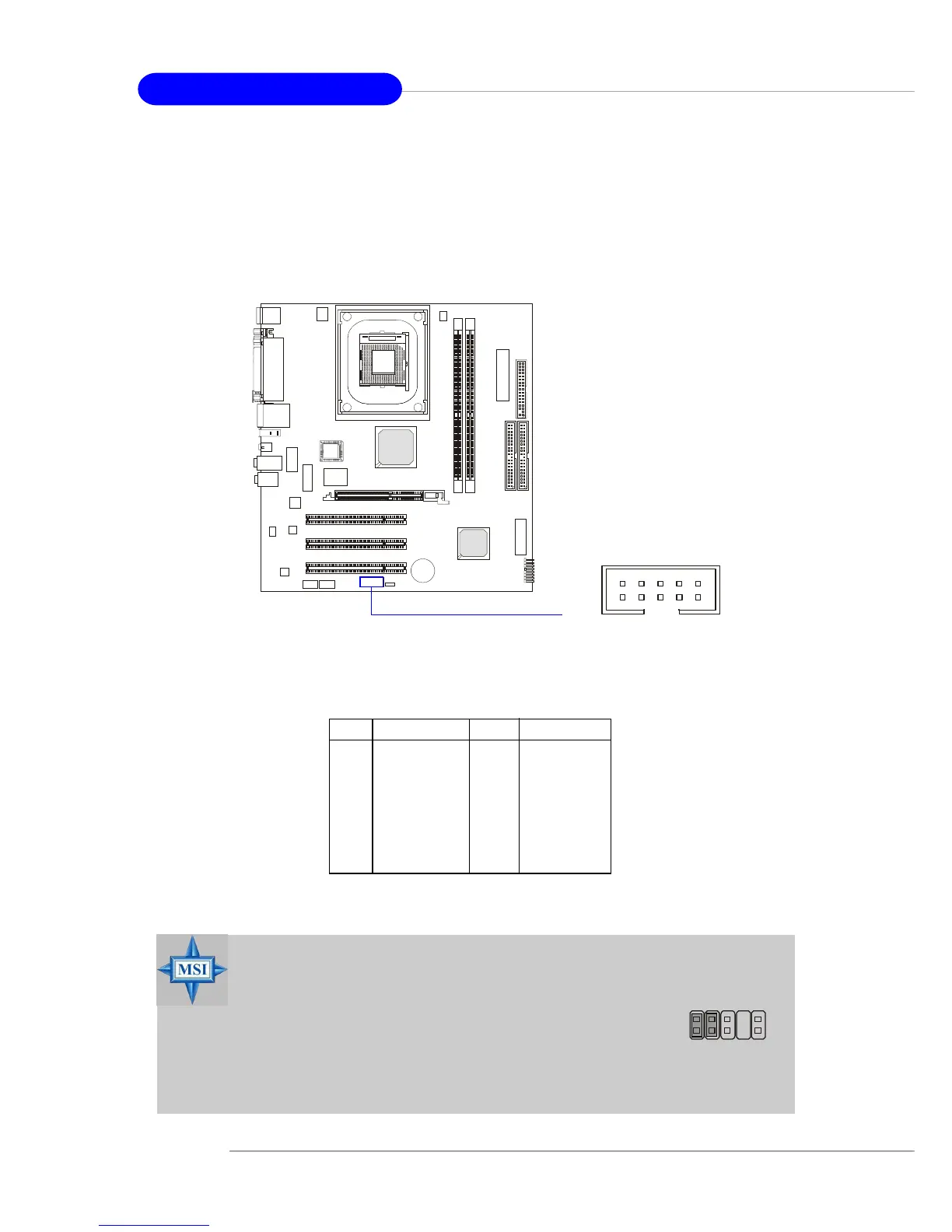

Front Panel Audio Connector: JAUDIO1
The JAUDIO1 front panel audio connector allows you to connect to the
front panel audio and is compliant with Intel
®
Front Panel I/O Connectivity
Design Guide.
MSI Reminds You...
If you don’t want to connect to the front audio
header, pins 1 & 2, 3 & 4 have to be jumpered in
order to have signal output directed to the rear
audio ports. Otherwise, the Line-Out connector on
the back panel will not function.
1
2
4
3
JAUDIO1
1
2
10
9
Pin Description Pin Description
1 Speaker_R 2 Front_R
3 Speaker_L 4 Front_L
5 GND 6 GND
7 MIC_IN 8 Line_Next_R
9 MIC_IN_S 10 Line_Next_L
JAUDIO1 Pin Definition
