MSI MD 5000 - Front USB Connector: JUSB1

2-21
Hardware Setup
Front USB Connector: JUSB1
The mainboard provides one front Universal Serial Bus connector for
users to connect USB devices.
Pin Description Pin Description
1 Power 2 Power
3 D1+ 4 D0+
5 D1- 6 D0-
7 GND 8 GND
9 SGND 10 SGND
11 GND 12 GND
13 D3- 14 D2-
15 D3+ 16 D2+
17 Power 18 Power

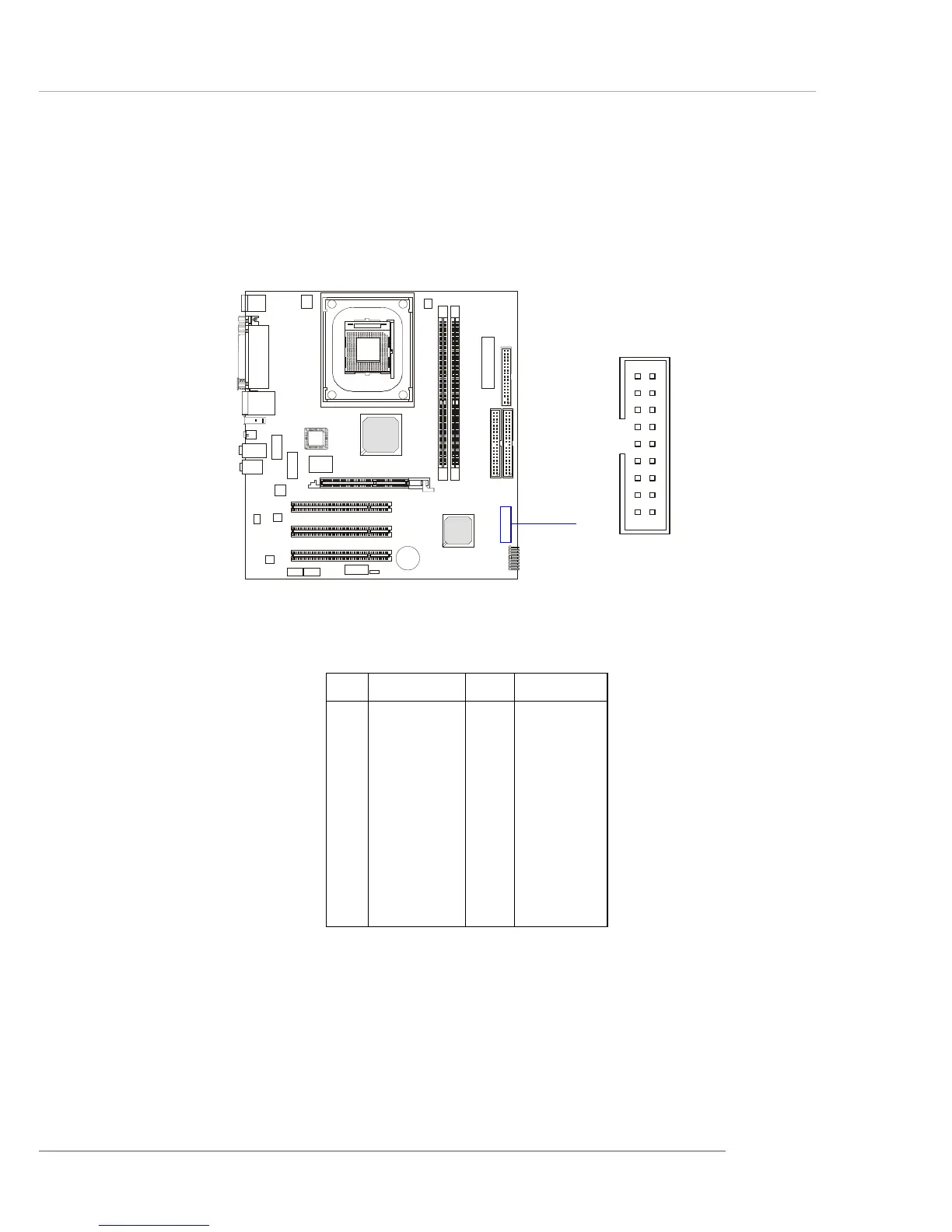

JUSB1 Pin Definition
JUSB1
1
2
17
18
