MSI MD 5000 - SPDIF Connector: JSPDIF1

2-23
Hardware Setup

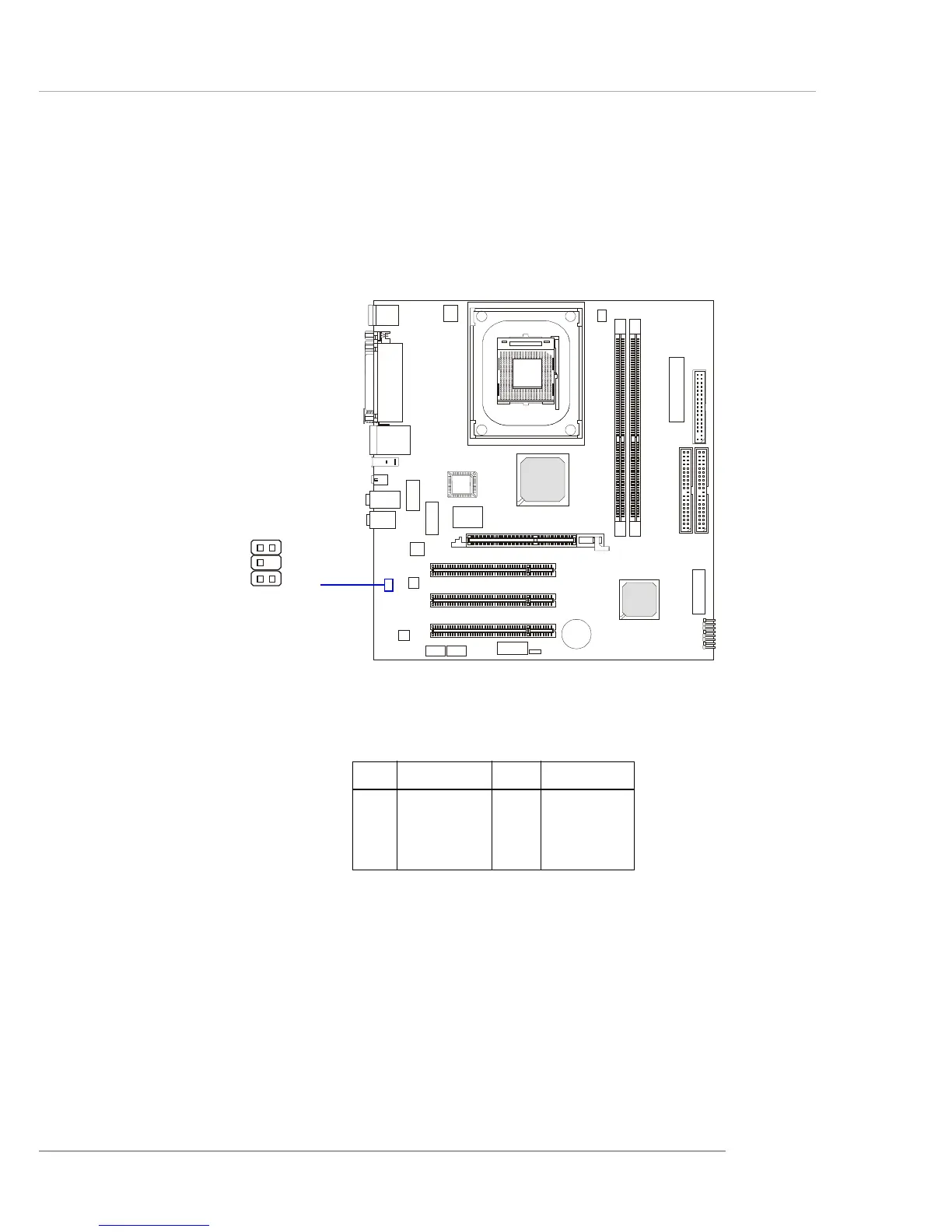

SPDIF Connector: JSPDIF1
The connector is used to connect an optional bracket for SPDIF (Sony
& Philips Digital Interconnect Format) digital audio transmission.
JSPDIF1
1
4
36
Pin Description Pin Description
1 VCC5 2 VCC3
3 SPDIF-O 4 NC
5 GND 6 SPDIF-I
JSPDIF1 Pin Definition
