2-24
MD-5000 M-ATX Mainboard

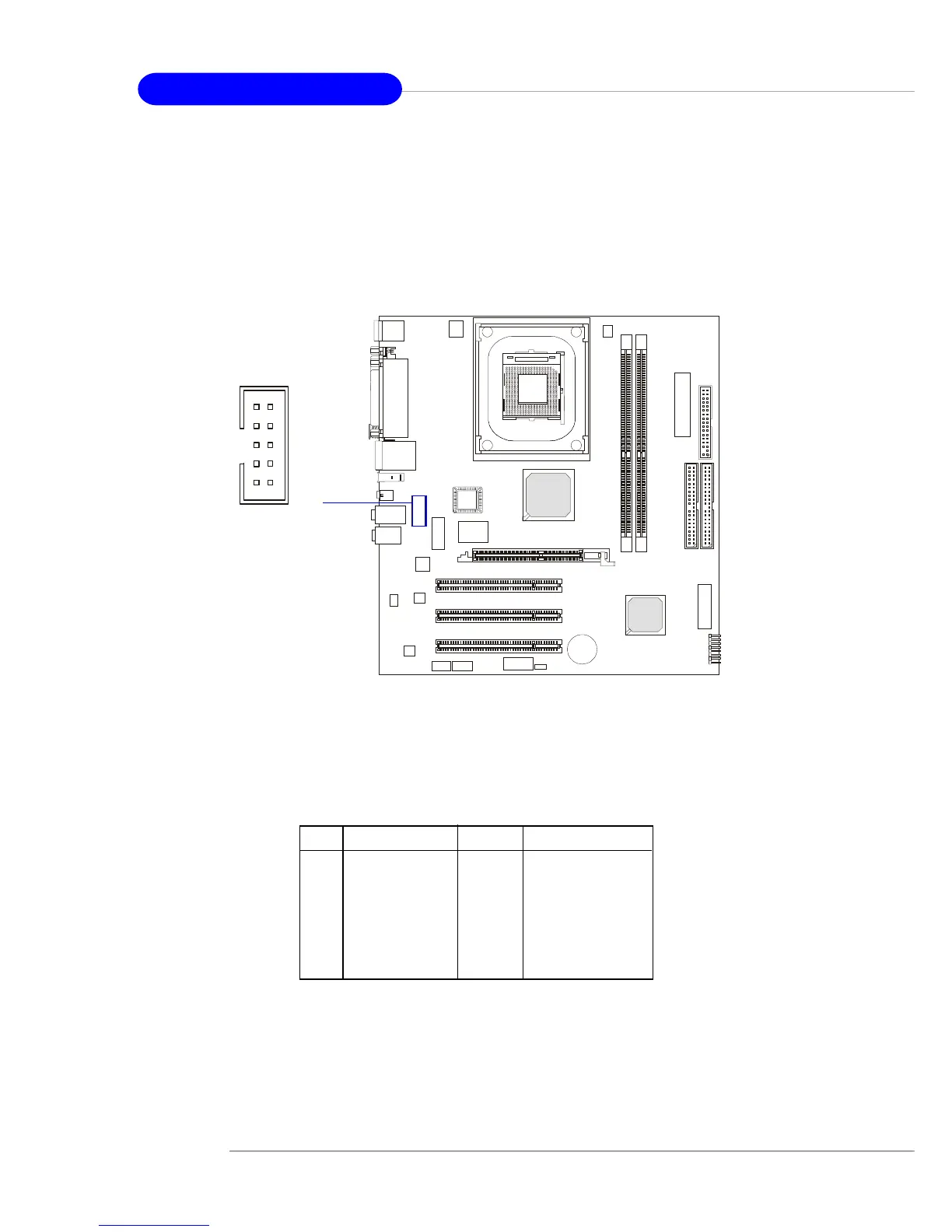

IEEE 1394 Connector: J7 (Optional)
The mainboard provides one IEEE1394 connector with housing that
allows you to connect optional IEEE 1394 ports.
PIN SIGNAL PIN SIGNAL
1 IEGND 2 GND
3 TPA0- 4 TPA0+
5 Power 6 Power
7 TPB0+ 8 TPB0-
9 GND 10 IEGND
Pin Definition
J7
1
9
2
10
