Chapter 2
2-10

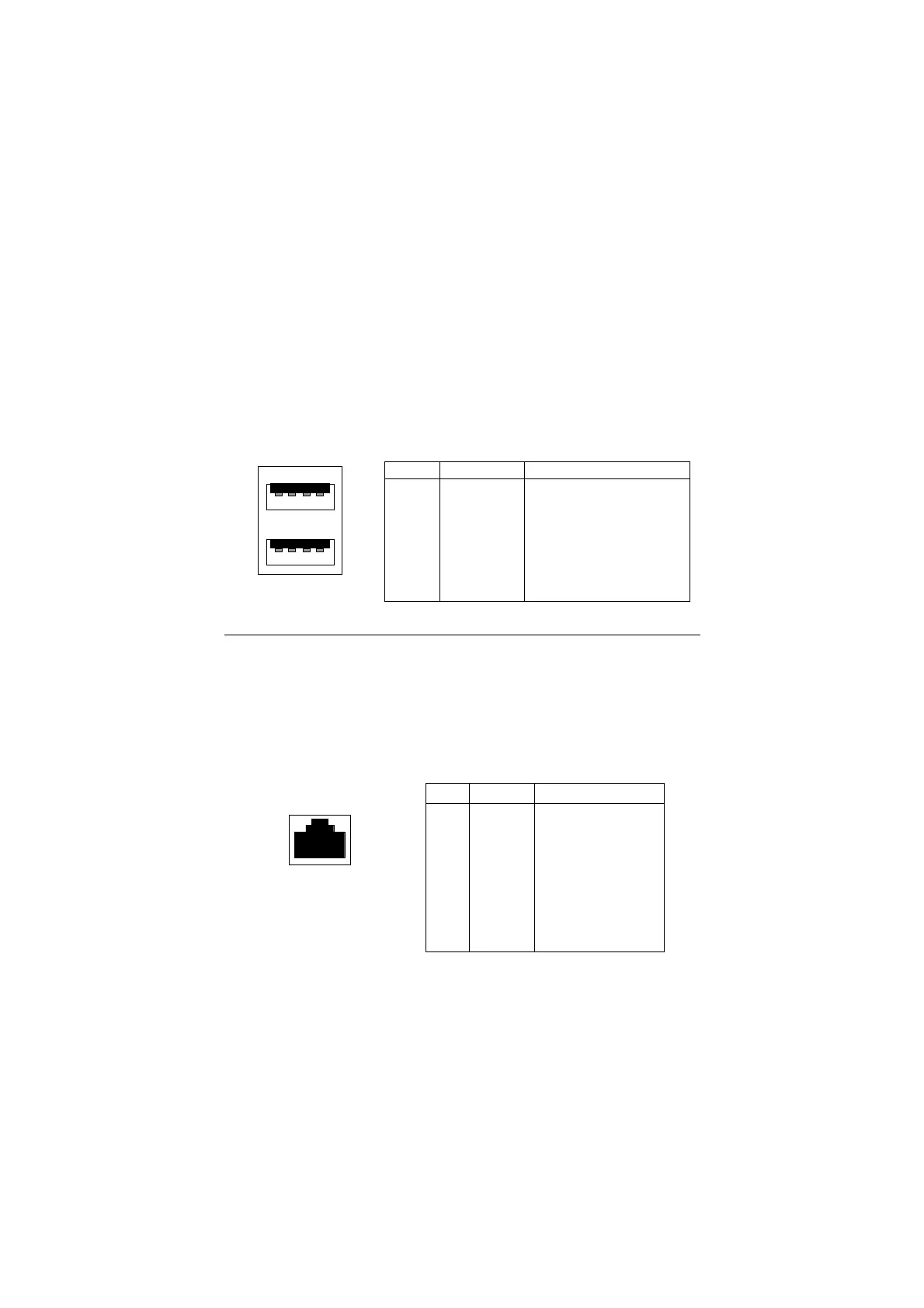

LAN Jacks (RJ-45)
The mainboard provides two standard RJ-45 jacks for connection to Local
Area Network (LAN): LAN 1 and LAN 2. You can connect network cable(s) to
the LAN jack(s).
LAN RJ-45 Jack
USB Connectors
The mainboard provides a UHCI (Universal Host Controller Interface) Univer-
sal Serial Bus root for attaching USB devices such as keyboard, mouse or other
USB-compatible devices. You can plug the USB device directly into ths
connector.
USB Ports
1 2 3 4
5 6 7 8
PIN SIGNAL DESCRIPTION
1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground
USB Port Description
Pin Definition
PIN SIGNAL DESCRIPTION
1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used
