Chapter 2
2-6
Install at least one DIMM module on the slots. Memory modules can be
installed on the slots in any order. You can install either single- or double-
sided modules to meet your own needs.
Memory modules can be installed in any combination as follows:
Slot Memory Module Total Memory
DIMM 1
(Bank 0 & 1)
S/D 64MB~1GB
DIMM 2
(Bank 2 & 3)
S/D 64MB~1GB
DIMM 3
(Bank 4 & 5)
S/D 64MB~1GB
Maximum System Memory Supported
64MB~3GB
DIMM Module Combination
S: Single Side D: Double Side

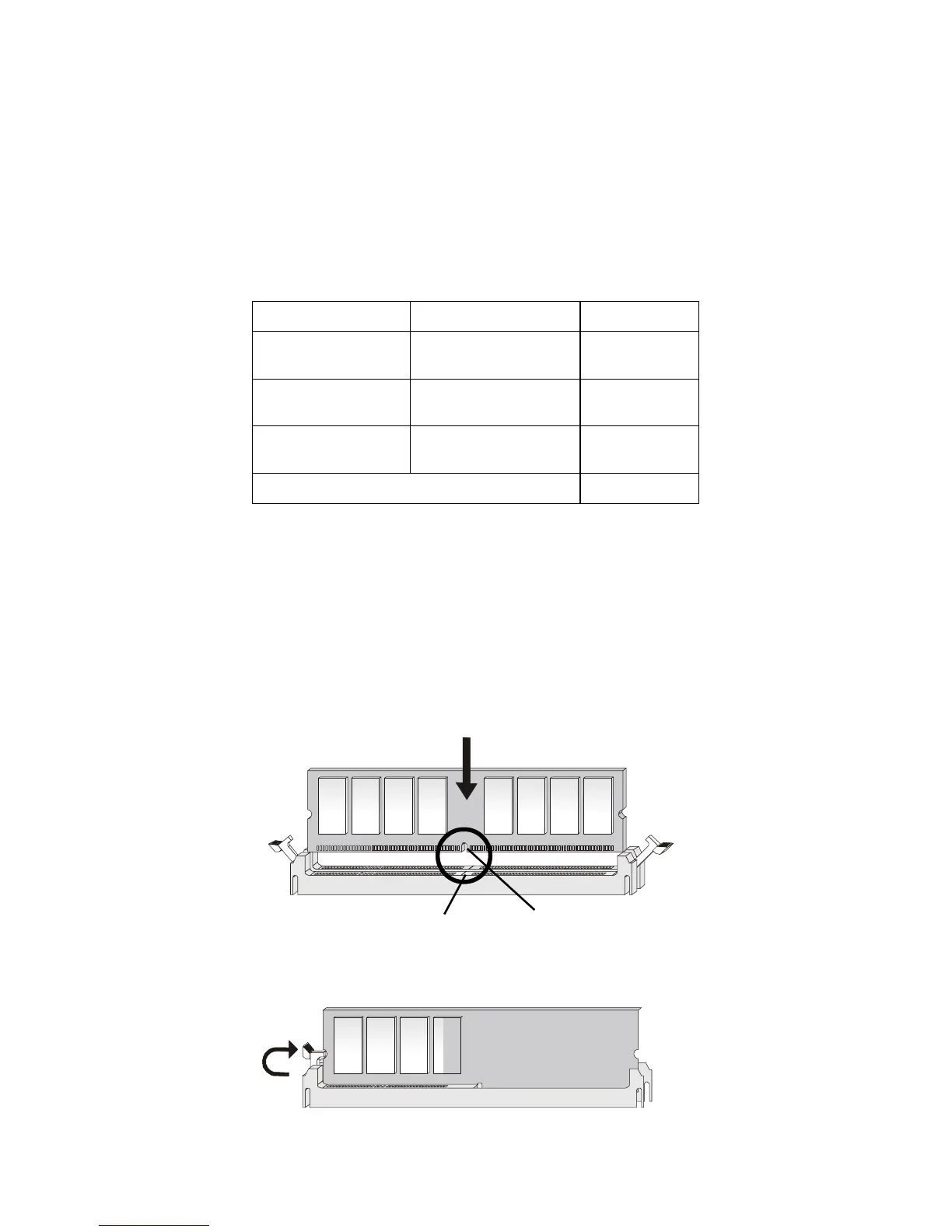

1. Insert the DIMM memory module vertically into the DIMM slot. Then push
it in.
2. The plastic clip at each side of the DIMM slot will automatically close.
Installing DIMM Modules
Volt
notch
The DDR DIMM has only one notch on the center of the module. The
module will only fit in the right orientation.
