MS-7036 M-ATX Mainboard

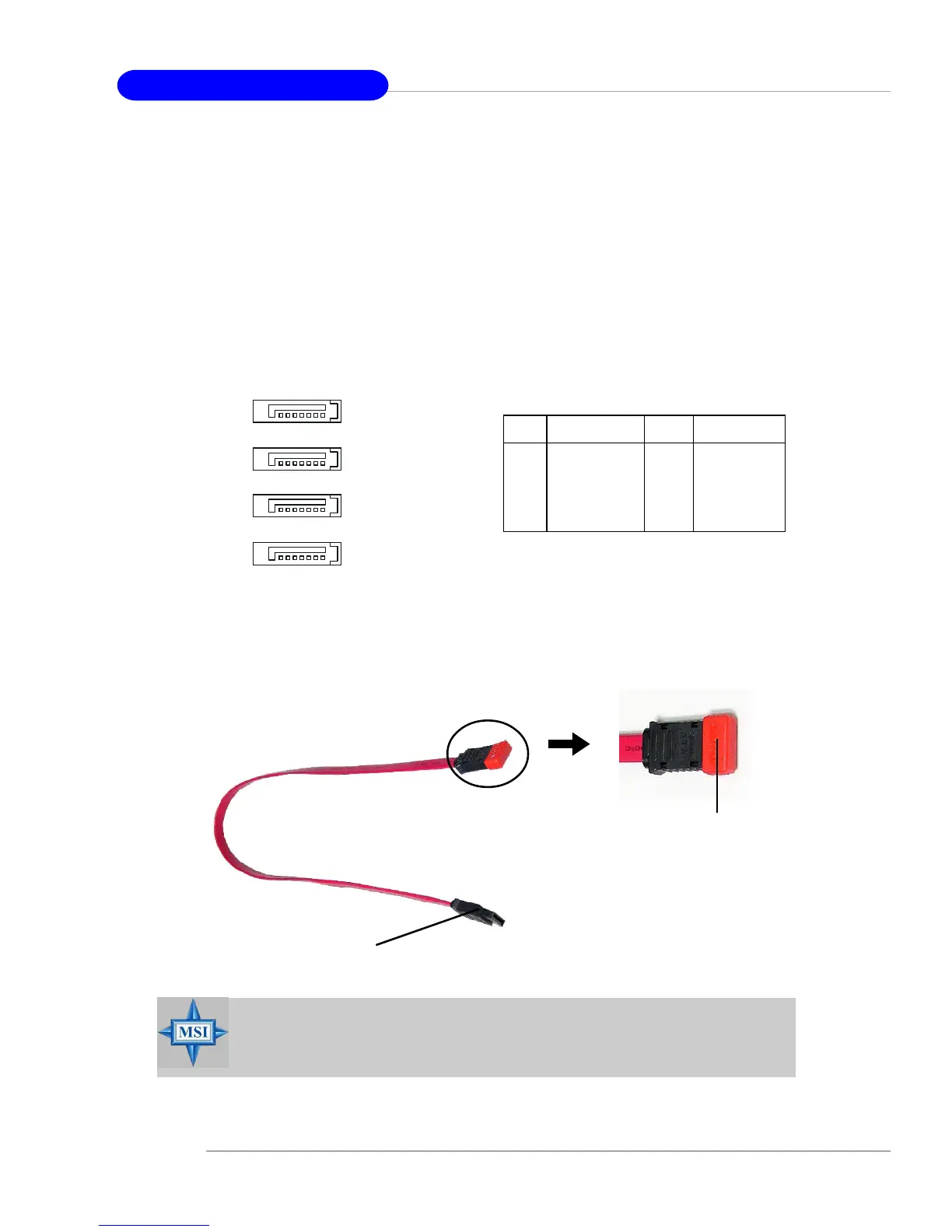

Serial ATA/Serial ATA RAID Connectors controlled by Intel ICH6:
SATA1~SATA4
The SouthBridge of this mainboard is Intel ICH6 which supports four serial ATA
connectors SATA1~SATA4.
SATA1~SATA4 are dual high-speed Serial ATA interface ports. Each supports
1
st
generation serial ATA data rates of 150 MB/s. Both connectors are fully compliant
with Serial ATA 1.0 specifications. Each Serial ATA connector can connect to 1 hard
disk device.
PIN SIGNAL PIN SIGNAL
1 GND 2 TXP
3 TXN 4 GND
5 RXN 6 RXP
7 GND
SATA1~ SATA4 Pin Definition
MSI Reminds You...
Please do not fold the serial ATA cable in a 90-degree angle, since
this might cause the loss of data during transmission.
Connect to serial ATA ports
Take out the dust cover and
connect to the hard disk
devices
Serial ATA cable
SATA4
SATA3
SATA2
SATA1
