MS-7036 M-ATX Mainboard

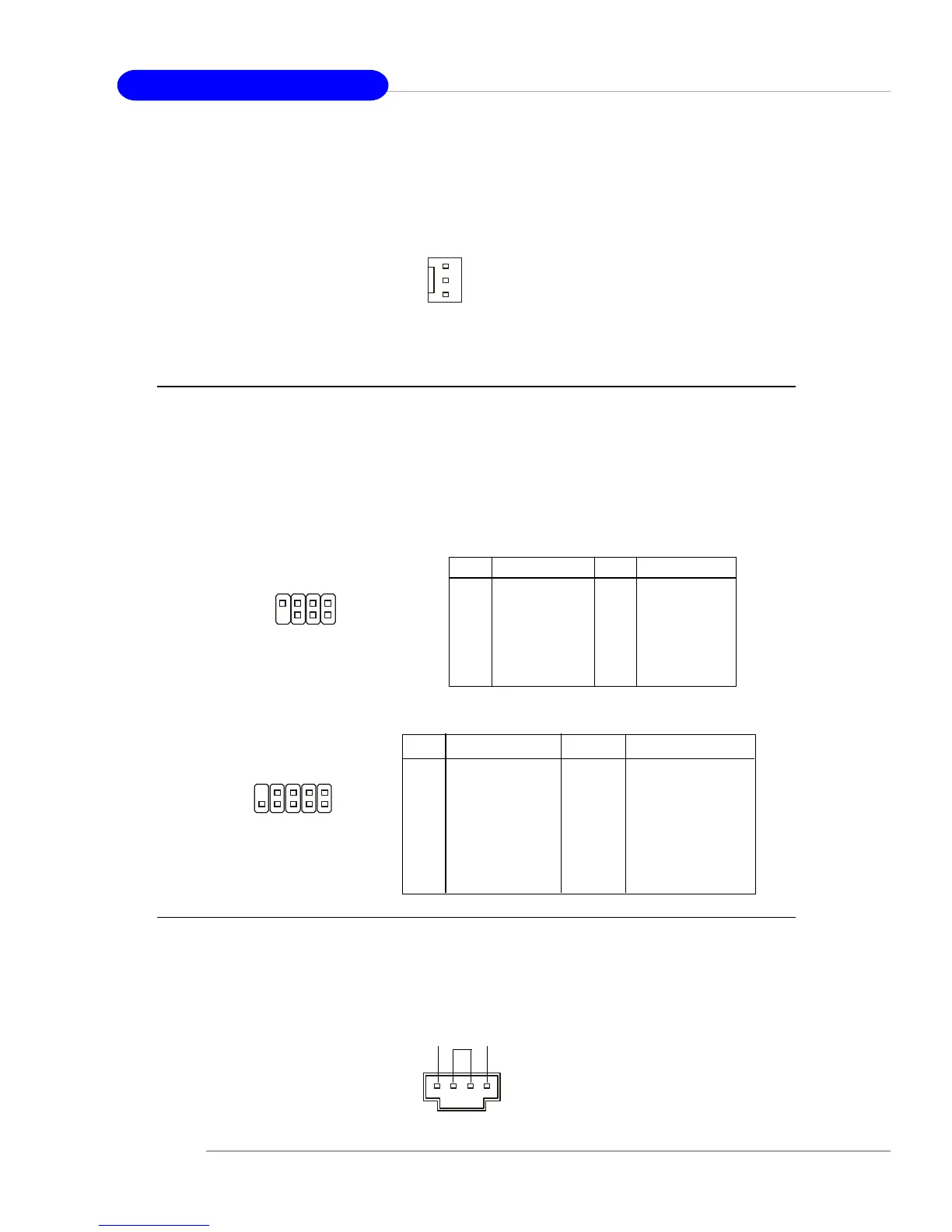

Independent Power Switch Connector: FRISW1
The connector is connected to an independent power switch on the case.
Touch the power switch’s touch pad to turn on/off the computer.
FRISW1
GND
+5VSB
PS-ON
1
IEEE 1394 Connectors: F1_1394 or J1394_2 (optional)
The mainboard provides one 1394 pin headers that allows you to connect IEEE
1394 ports via an external IEEE1394 bracket.
Aux Line-In Connector: AUX_IN1
The connector is for DVD add-on card with Line-in connector.
AUX_IN1
RL GND
J1394_2 Pin Definition
PIN SIGNAL PIN SIGNAL
1TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
PIN SIGNAL PIN SIGNAL
1 Power 2 GND
3 TPB- 4 TPB+
5TPA- 6TPA+
7 GND 8 Key (no pin)
F1_1394 Pin Definition
F1_1394
(optional)
8
2
7
1
J1394_2
(optional)
1 9
2 10
or
