1-11
Mainboard Hardware

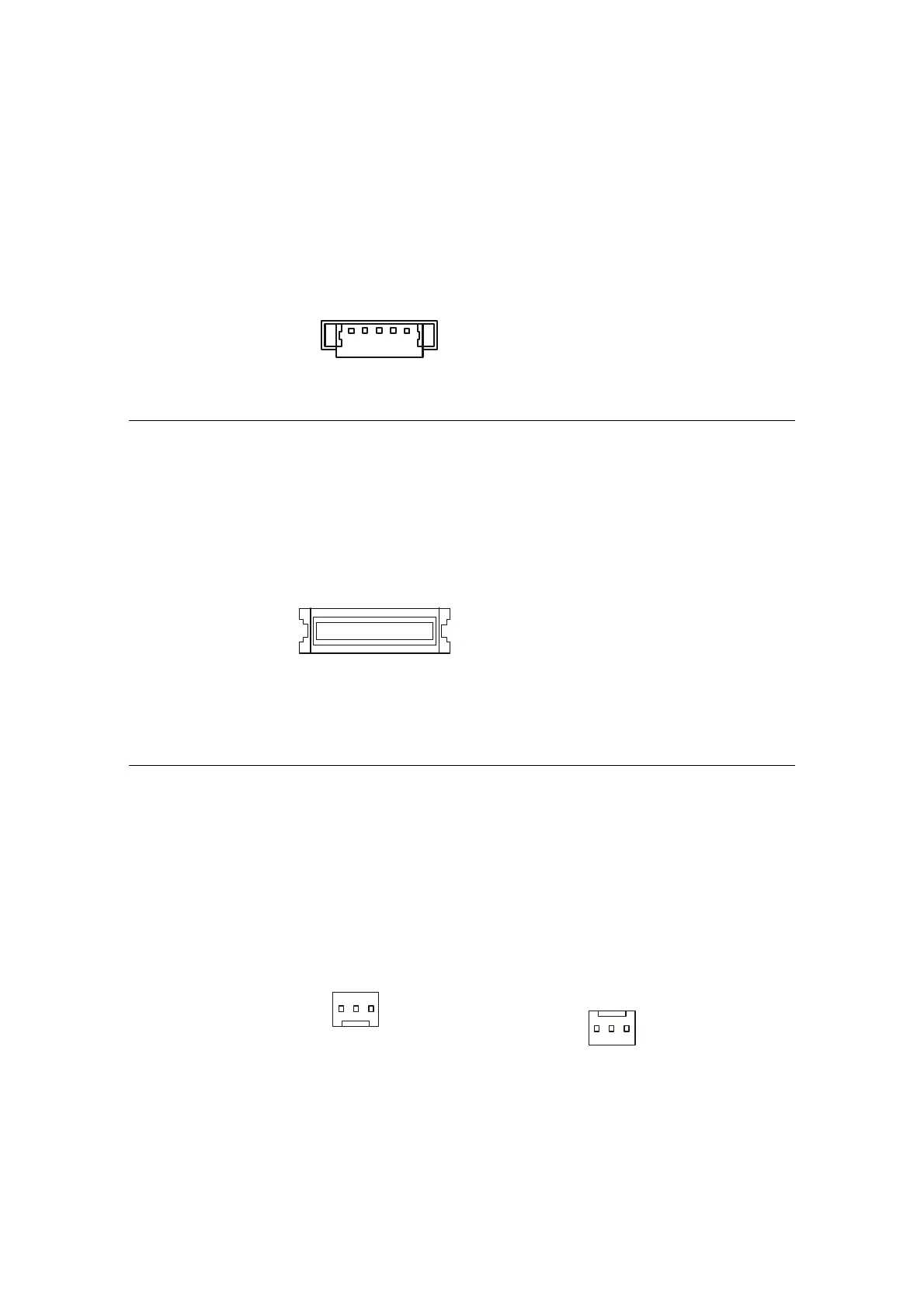

Modem Module Connector: MDCT2000 (Optional)
The mainboard provides the connector to connect the modem module. The
modem module is directly inserted into the connector without an extra cable.
CPU Fan Connectors: CPUFAN1/SYSFAN1
The CPUFan1/SYSFAN1 connectors support system cooling fans with +12V
that is controlled by PWM. When connecting the wire to the three-pin head connectors,
always note that the red wire is the positive and should be connected to the +12V
(that is controlled by PWM), the black wire is Ground and should be connected to
GND.
Card Reader Connector: CRT2000
The mainboard provides a connector to connect the USB Card Reader (for
Deluxe Model) on the Front Panel.
MDCT2000
CRT2000
CPUFAN1
SENSOR
FAN Power
GND
SENSOR
FAN Power
GND
SYSFAN1
