MSI MS-7072 User Manual

1-12
Chapter 1

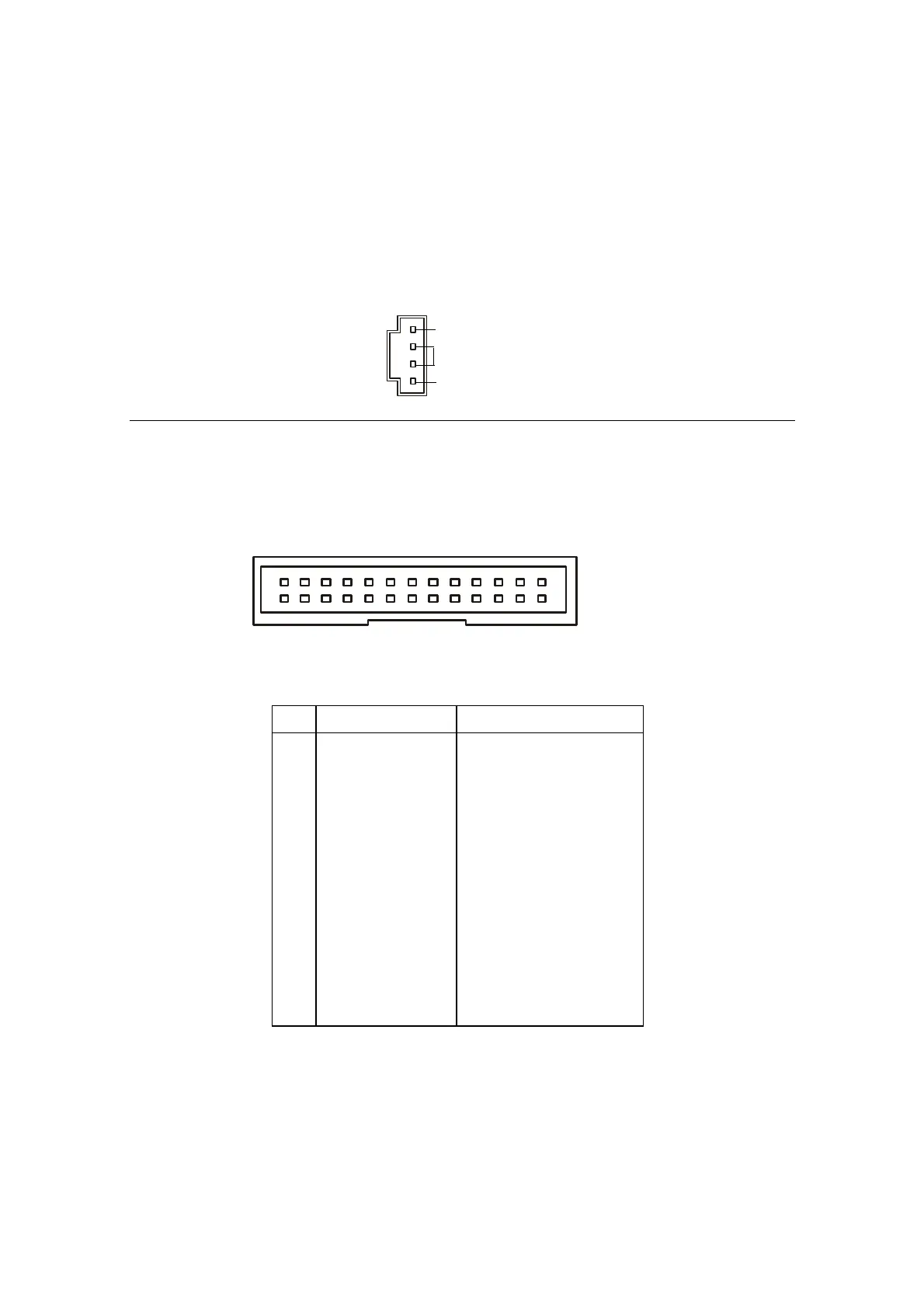

Color LED Connector: LCMT2000
The connector is used to connect the color LED on the front panel.
Pin Definition
Pin Signal
1 SRS
5 MP_RTS
7 MP_DTR
9 IR or RST#
11 CD_SMI#
13 VCC5
15 MP_CTR_PWRON
17 IDE_LED
19 PLED1
21 PLED2
25 BASS_DETECT
Pin Signal
4 OS-SEL
6 MP_RXD
8 MP_TXD
10 FLAT
12 ROCK
14 POPS
16 CLASSIC
18 EQ_CYC
20 VCC5-SB
23 BASS
TV-Tuner Card Connector: CNT2011
The mainboard provides the connector to connect the TV-Tuner card. You
can insert the TV-Tuner card into the PCI Slot 1.
GND
R
L
CNT2011
LCMT2000
1
25
2 6
2
