Hardware Setup

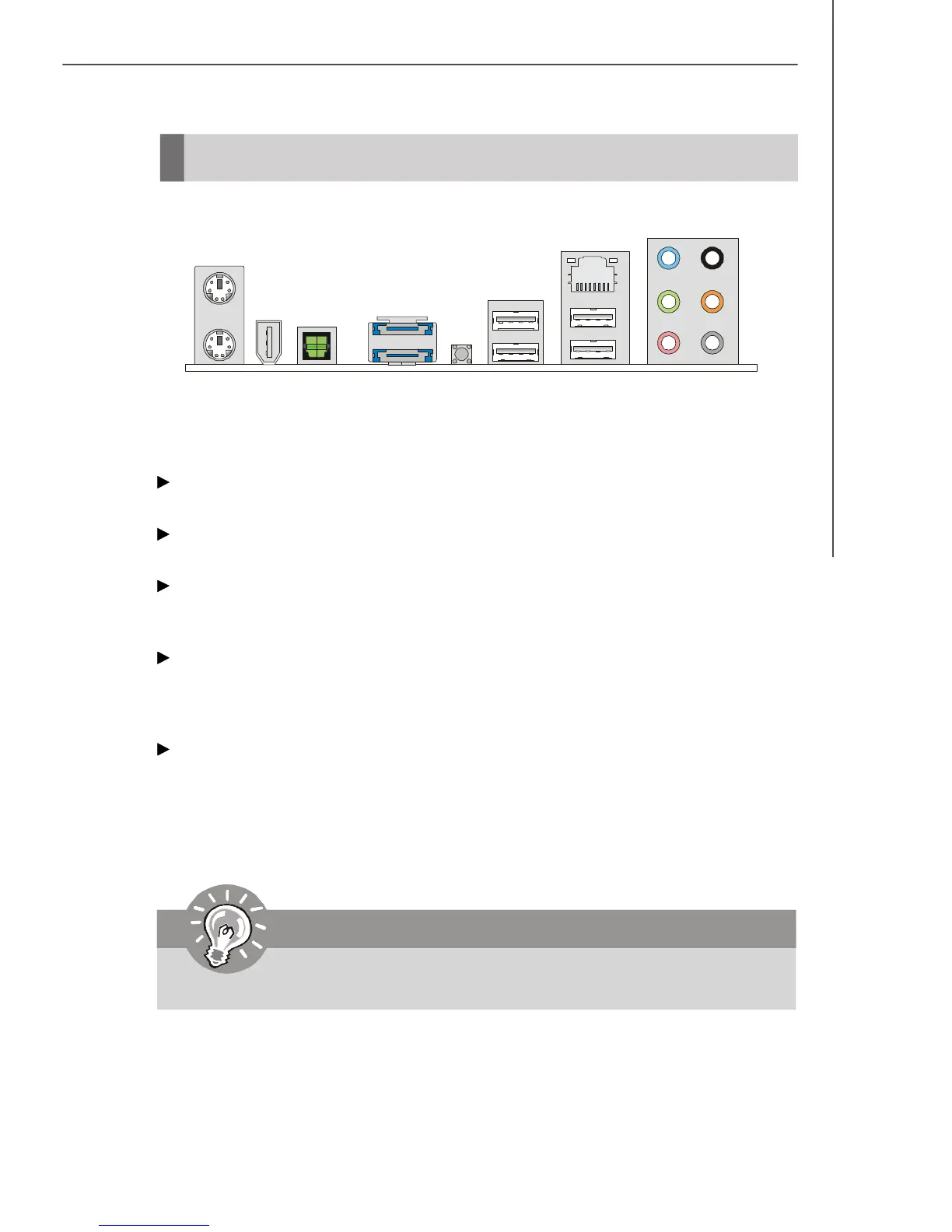

Back Panel
Mouse/Keyboard
The standard PS/2
®
mouse/keyboard DIN connector is for a PS/2
®
mouse/keyboard.
1394 Port (optional)
The IEEE1394 port on the back panel provides connection to IEEE1394 devices.
Optical S/PDIF-Out
This SPDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through an optical fiber cable.
eSATA Port (optional)
This eSATA (External Serial ATA) port is used to connect the external SATA device.
You can also use the optional external SATA cable to connect SATA device and
eSATA port.
Clear CMOS Button
There is a CMOS RAM on board that has a power supply from external battery to
keep the system configuration data. With the CMOS RAM, the system can automati-
cally boot OS every time it is turned on. If you want to clear the system configuration,
use the button to clear data. Press the button to clear the data.
Keyboard
USB Port
Line-In
Mouse
(optional)
1394
Port
RS-Out
CS-Out
SS-Out
Line-Out
Mic
(optional)
eSATA Port
Optical
S/PDIF-Out
LAN
USB Port
Clear CMOS
Button
Important
Make sure that you power off the system before clearing CMOS data.
