2-8
Hardware Setup MS-99A1

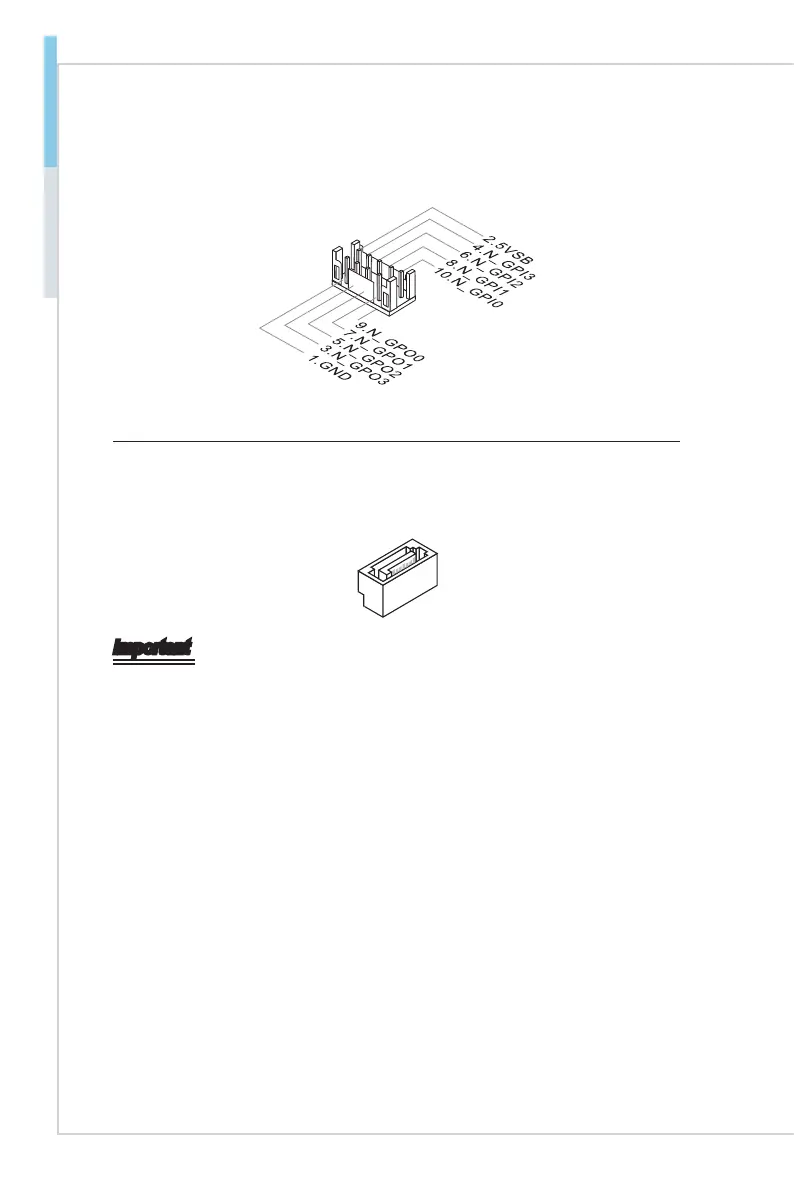

GPIO Pin Header: JGPIO1
This connector is provided for the General-Purpose Input/Output (GPIO)
peripheral module.
Serial ATA Connector: SATA1
This connector is a high-speed Serial ATA Gen3 interface port. Each connector
can connect to one Serial ATA device.
Important
Please do not fold the SATA cable into a 90-degree angle� Otherwise, data loss
may occur during transmission�
